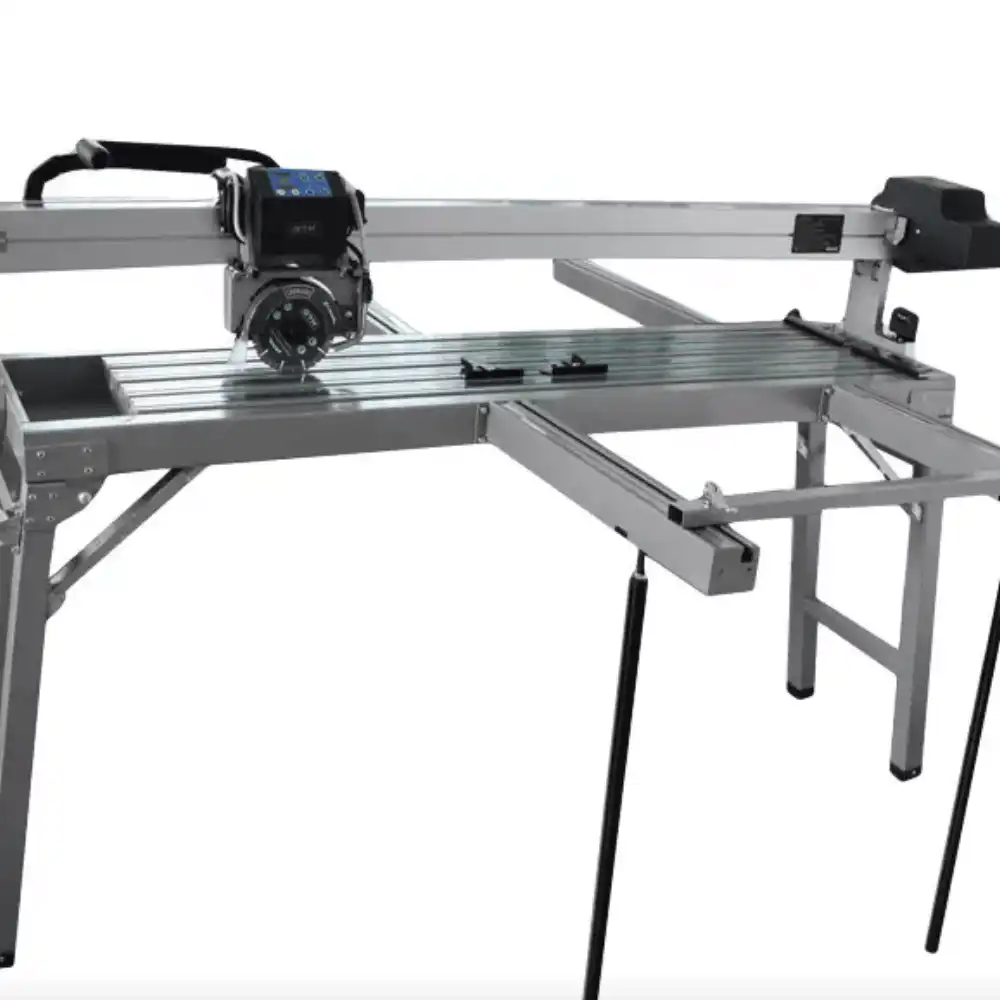

GTM ST1201A Automatic Tile Cutter, 1200 mm

GTM ST1201A tile cutter

The GTM ST1201A is an electric tile cutter made for cutting porcelain stoneware at 90 degrees and at 45 degrees. It can take off a micro chamfer, a bullnose chamfer with a finger bit, and it can also cut grooves for inlay strips. Its main use is the 45 degree cut (chamfering).

Its distinguishing feature is the automatic travel of the carriage with the blade. This cutter, like its rivals Wandeli and Shijing, is at its best on porcelain stoneware. The blade is cooled by water fed into the cutting zone. A pump does the feeding and the pressure can be adjusted. The water reaches the blade through two small tubes that can be aimed. The water feed and the automatic feed at low speed keep chipping to a minimum. A blade for the hardest porcelain stoneware comes with it. A chamfering finger bit is included.

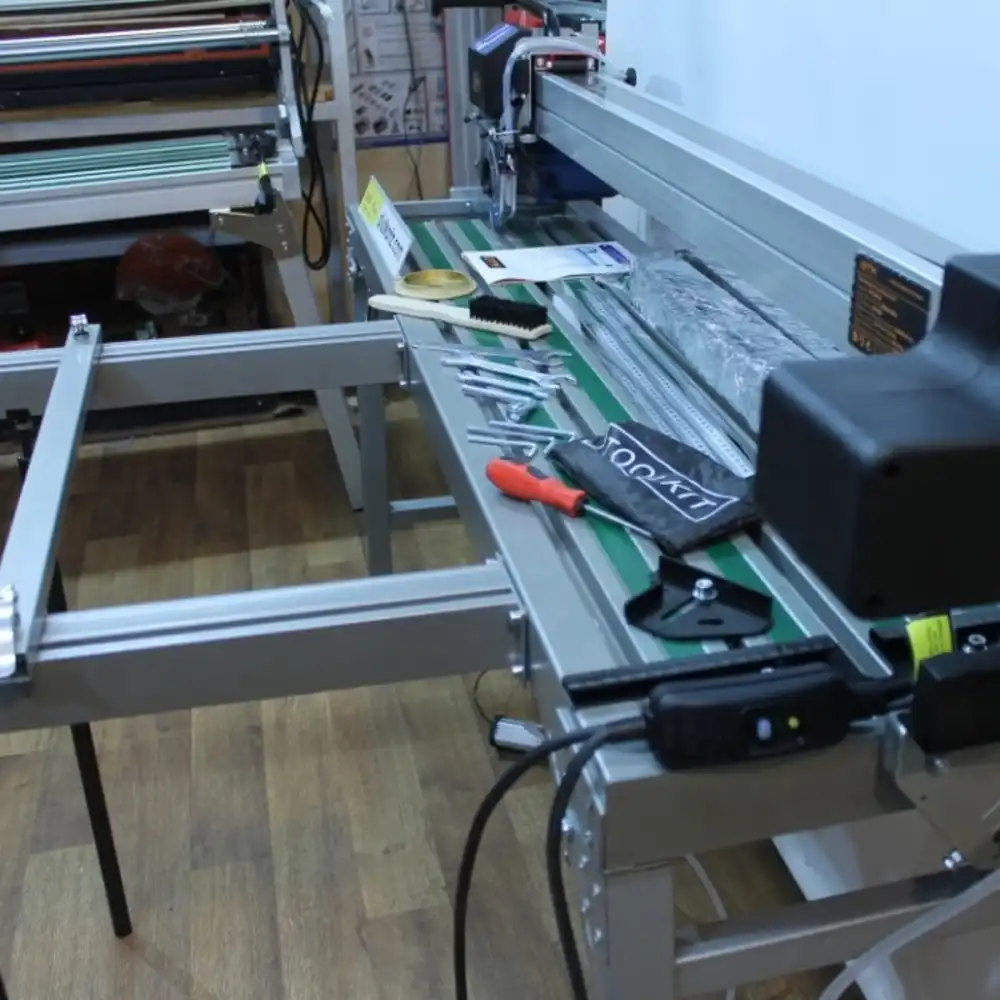

A powerful 1750 W brushed motor of the angle grinder type will handle porcelain stoneware up to 19 mm thick in one pass. There is a reduction gear that lowers the blade mounting axis. The motor with the blade can be raised and locked at any height. Carriage travel speed is adjustable. You can also work it by hand. There is a mode that returns the carriage to its starting position. There is residual current protection against electric shock.

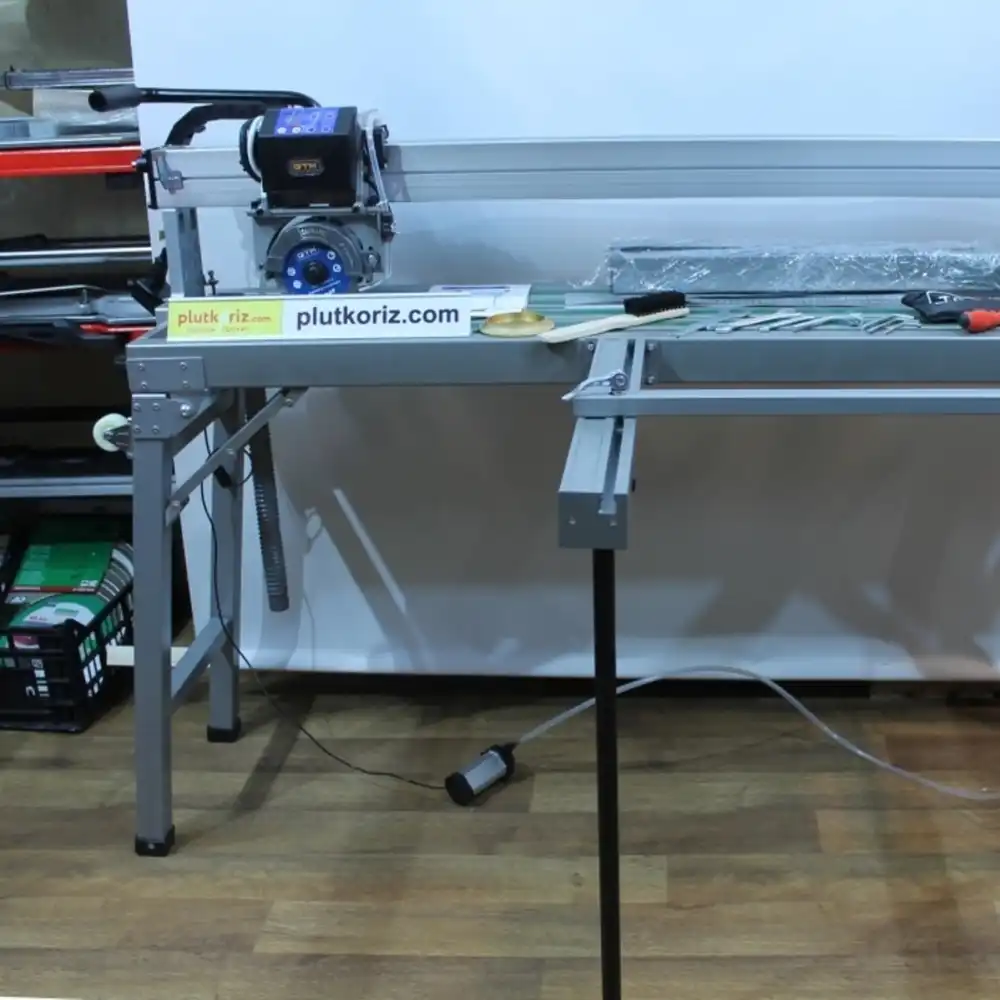

The guide (rail), the side upright of the rail and some other parts are made of aluminium. The table is steel, well painted. The cutter stands firmly on its legs. The legs fold easily. There are wheels so you can move it around the site. For quick, easy marking of the tile there is a red laser.

Strengths of the GTM ST1201A

• High-speed 1750 W motor with armoured stator and rotor.
• Blade diameter 120 mm (125 mm), bore 20 mm, rotation speed 14000 rpm.
• Maximum tile cutting thickness 19 mm, and length 1205 mm.
• Machine weight, kg 42.0.
• The motor carriage runs on a steel guide housed inside an aluminium cover with a dust protection system.

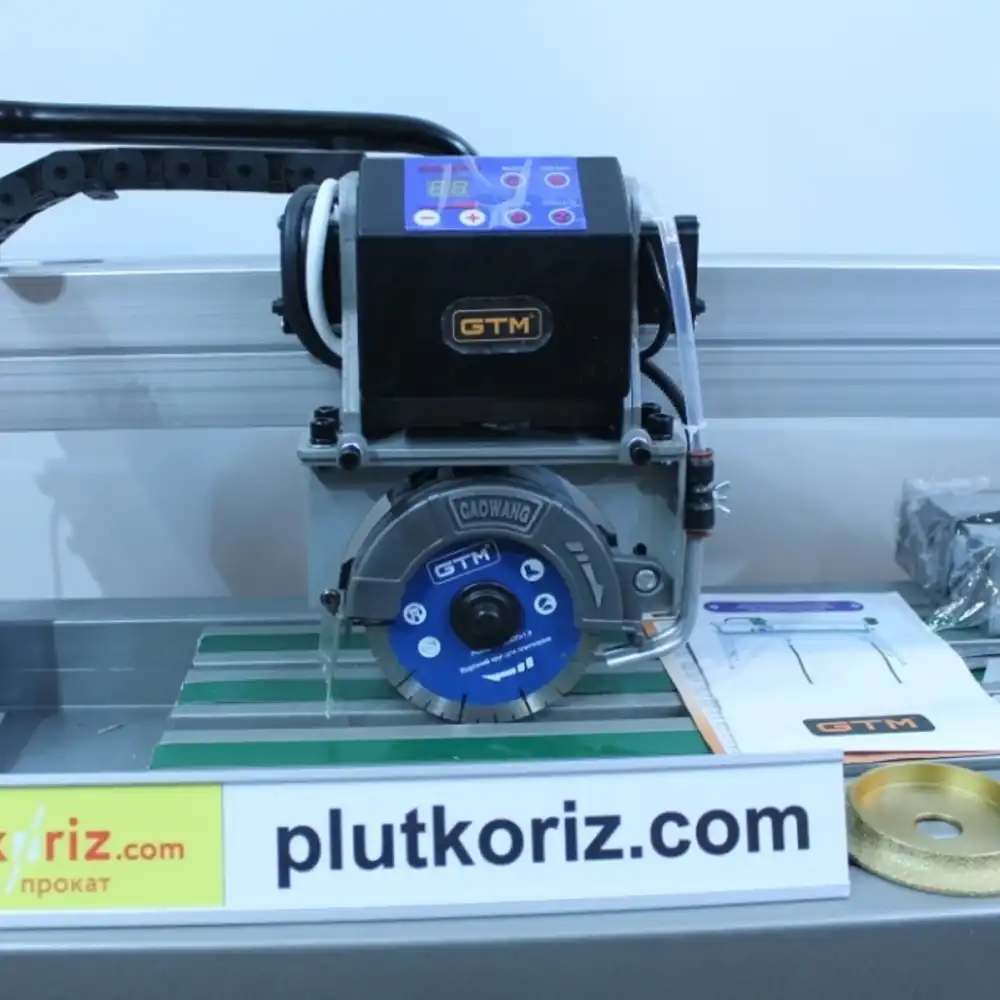

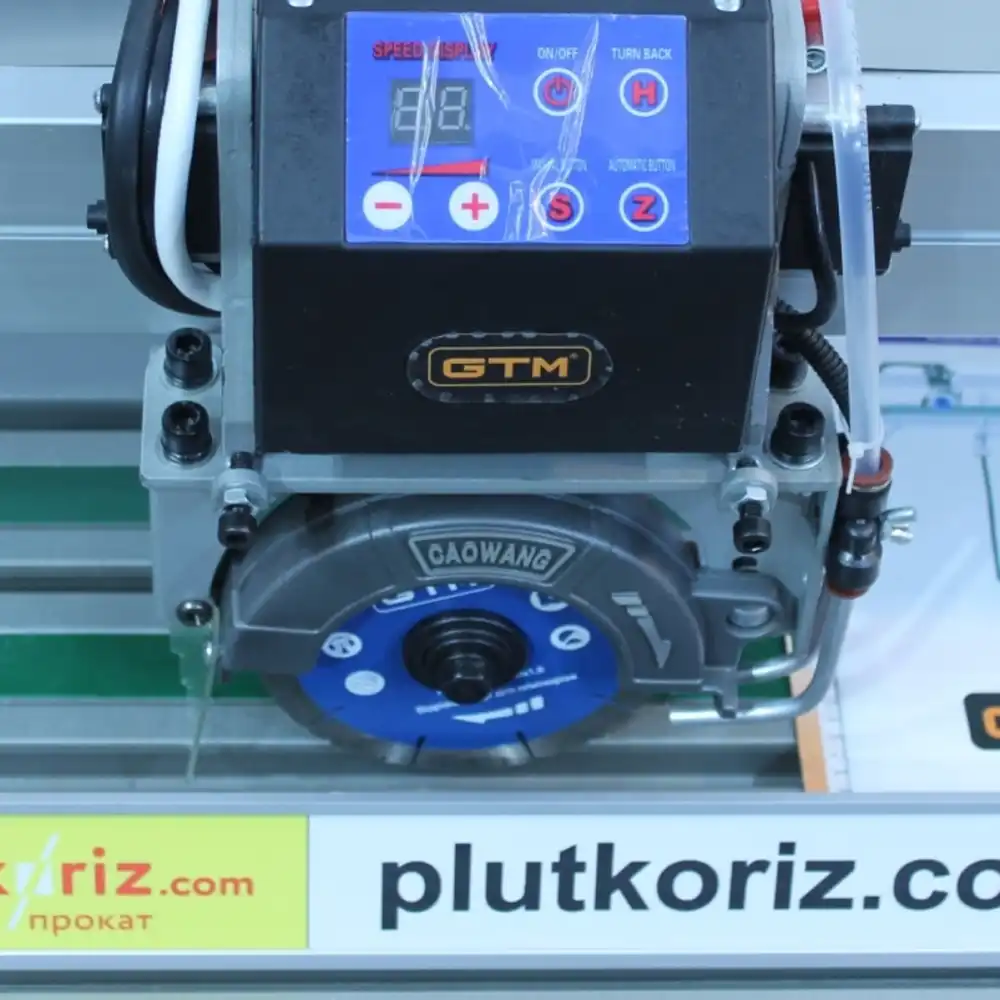

• Control panel with automatic feed of the cutting blade and adjustable carriage feed speed.
• Automatic return of the carriage with the blade to its starting position.
• Water fed on both sides of the cutting blade gives a clean cut, a longer-lived blade and dust-free work.
• Red laser cut-line pointer.
• Compact both set up and folded down.
• Cutting angle adjustable from 90 to 45 degrees.
• A blade comes in the box, and a finger bit for the bullnose chamfer as well.

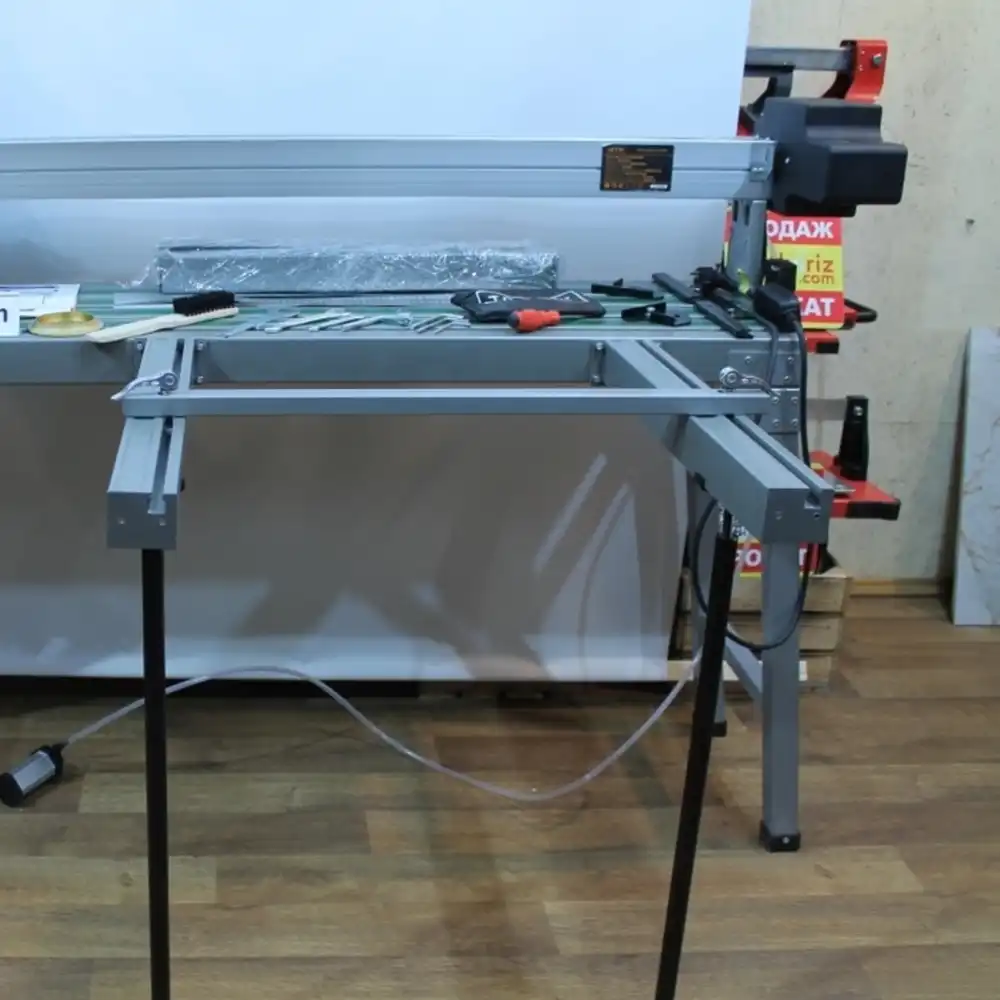

• Table extensions, 2 pcs on each side, and two support legs.

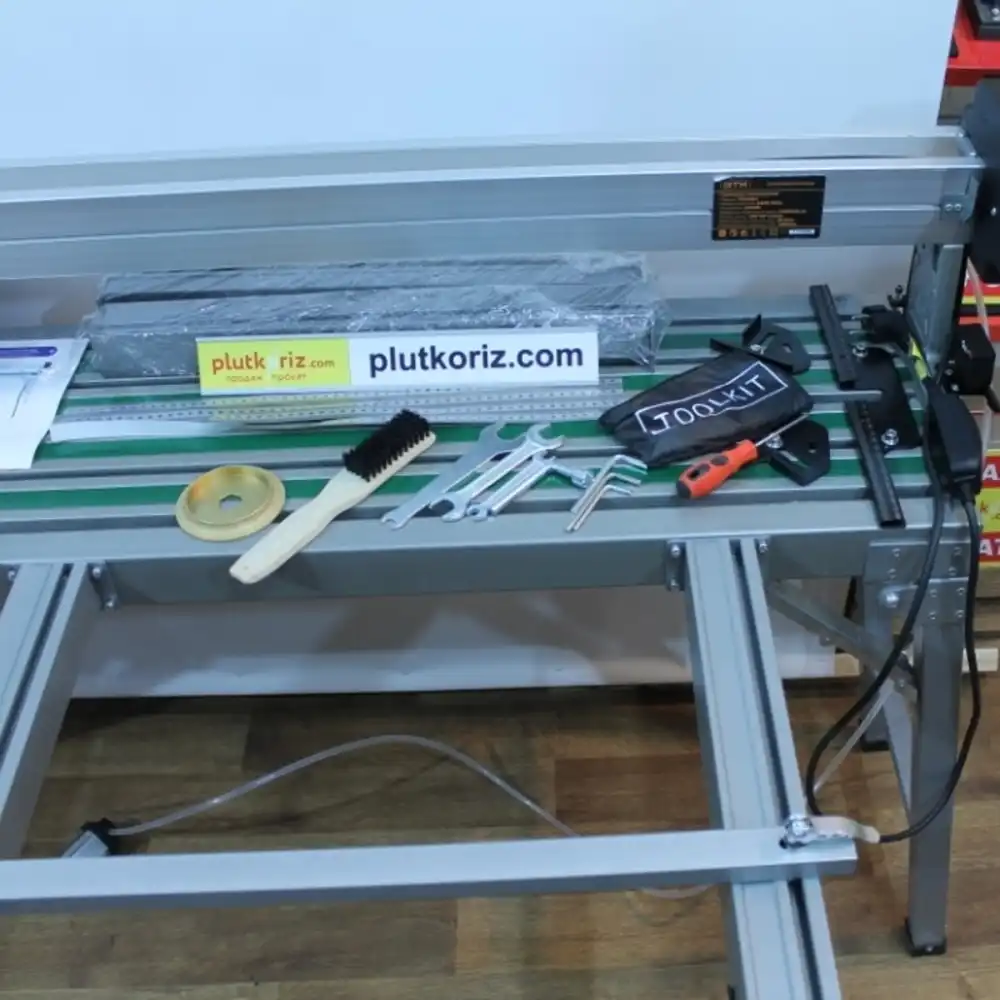

What comes with the GTM ST1201A

1. Tile cutter
2. 4 table extensions and 2 support legs
3. Cutting blade
4. Spanners for fitting the blade
5. Chamfering finger bit
6. Tool set for assembling the cutter
7. Manual
8. Warranty card
