Bihui Electric Cutter for Large Format Slabs

BIHUI electric cutting system for large format slabs up to 3240 mm long.
This system was developed specially for cutting porcelain stoneware slabs up to 3240 mm long and up to 19 mm thick, and also for mitring tile edges at 45 °.
Advantages of the system:
– it can do both straight cuts and mitres on large format slabs;
– the carriage of the system is made of thick, strong steel, so it does not bend when cutting at 45;
– special bearings on eccentrics hold the carriage firmly in the rail (guide) and let you set the cutting direction conveniently;
– Cutting depth at 90 ° – 19 mm, at 45 ° – 13 mm;
– thanks to the combination of a powerful 1500 W motor, high revs of 13000 rpm and a 125 mm diameter blade, the cut comes out clean and straight;
– it is fixed to the slab with two clamps and 3 suction cups;
– The cutter is meant for dry cutting, with the option of connecting a vacuum cleaner for dust collection. Vacuum connection Ø32 mm. – it has a handy case and a bag for storage and transport.

Specifications of the system:
Type: electric tile cutter
Rated voltage: 220 V
Power: 1500 W
Rpm: 13000
Blade bore diameter: 22.23 mm
Max. blade diameter: 125 mm
Maximum cutting thickness at 90°: 19 mm
Maximum cutting thickness at 45°: 13 mm

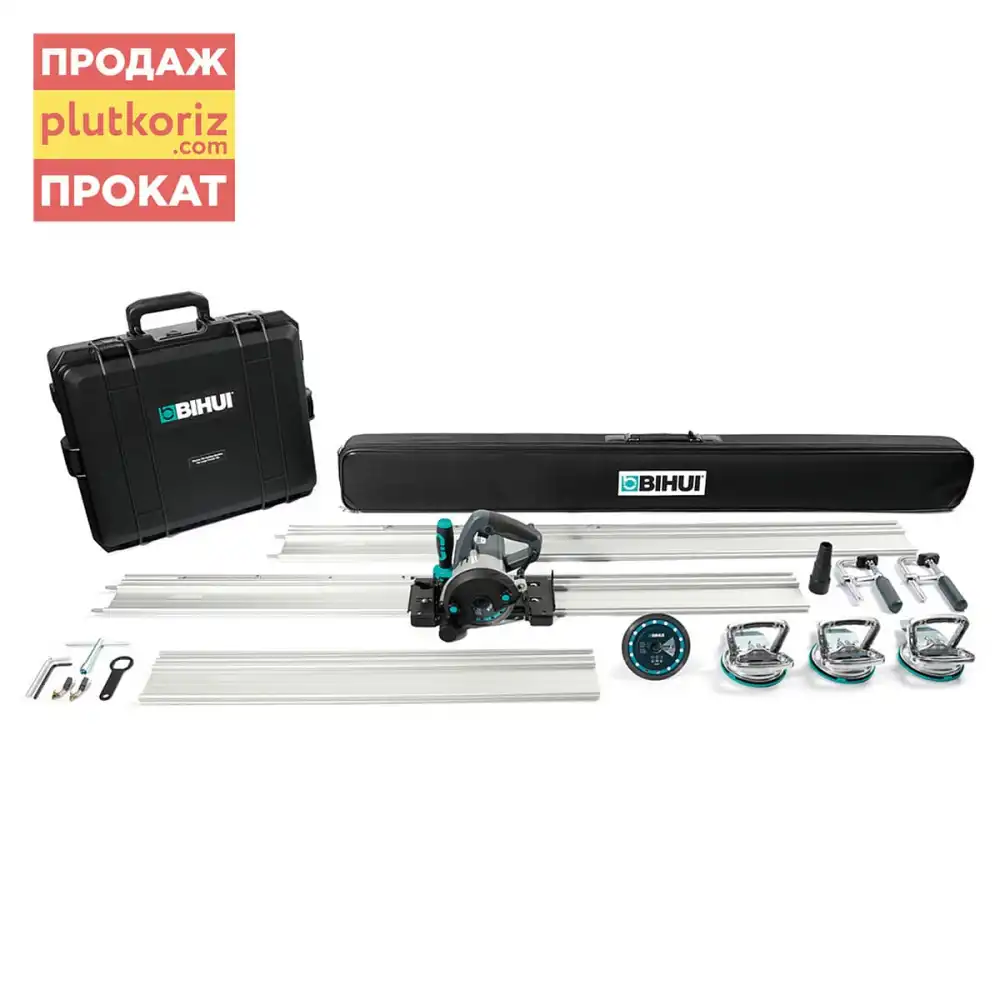

The delivery set includes:
– 1 electric saw 1500 W for 115 and 125 mm blades;
– 2 diamond blades Ø125*1.2*22.23 mm;
– 1 set of spare carbon brushes;
– 1 adapter for connecting a vacuum cleaner;
– 1 set of spanners for changing the blade;
– 3 aluminium guides, 3.6 m long in total (1.4 m+1.4 m+0.8 m);
– 2 clamps;
– an adapter for connecting vacuum cleaners of different makes (Ø37, 42 and 50 mm);
– a plastic case and a bag for storing and carrying the tools.

Weight: 25 kg.

Made in China
