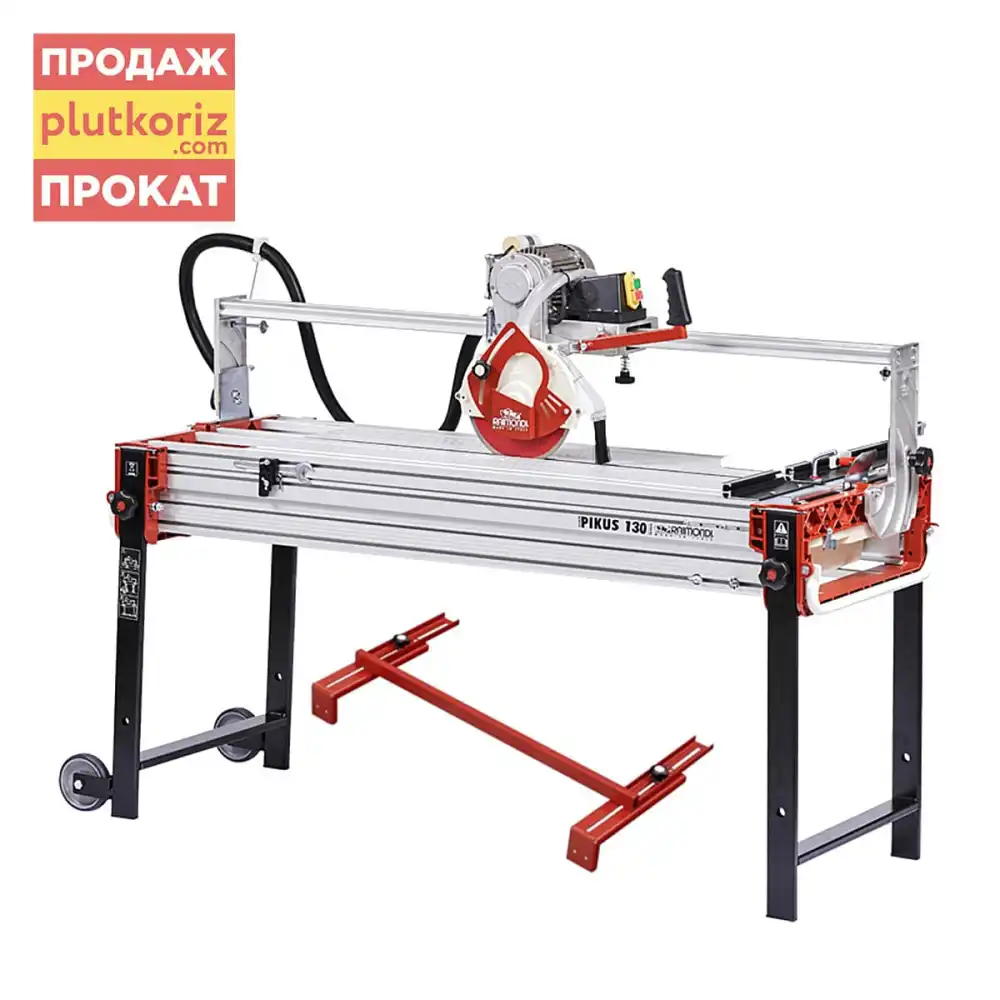

Raimondi Pikus 130 ADV Stone Saw, 1400 mm

Raimondi Pikus 130 ADV.

A versatile machine that works both as a tile cutter and as a stone saw.

Features and advantages of the Raimondi Pikus 130:

• maximum cutting length 130 cm;
• made for straight cuts and cuts from 0° to 45° in porcelain stoneware, marble, granite, sandstone, brick, clinker;
• saw power – 1.1 kW,
• diamond blade speed – 2800 rpm, belt drive;
• maximum cutting depth: 80 mm in a single pass; 150 mm in a double pass;
• maximum diamond blade diameter 250 mm (supplied with the stone saw);
• splash and chip guards on both sides;
• water fed to the diamond blade from both sides, with adjustable flow;
• the blade can be locked at a set height above the material, which lets you make grooves and scores of equal depth;
• the working surface of the stone saw is made of aluminium profile;
• the carriage runs along the rail on 4 adjustable rollers, which takes the play out of the blade;
• along the cutting direction the machine carries rules with millimetre markings.
• there is a marking for diagonal cutting with the format shown;
• a sliding rule for cutting tile at an angle;
• pull-out polypropylene tray, 38 l.
• folding legs on castors make the machine easy to move.

Machine specifications:

• maximum cutting length 1300 mm;
• cutting height – 80 mm;
• cutting angle from 0 ° to 45 °;
• power 1.1 kW;
• blade speed 2800 rpm;
• belt drive.
• machine weight 78 kg.
