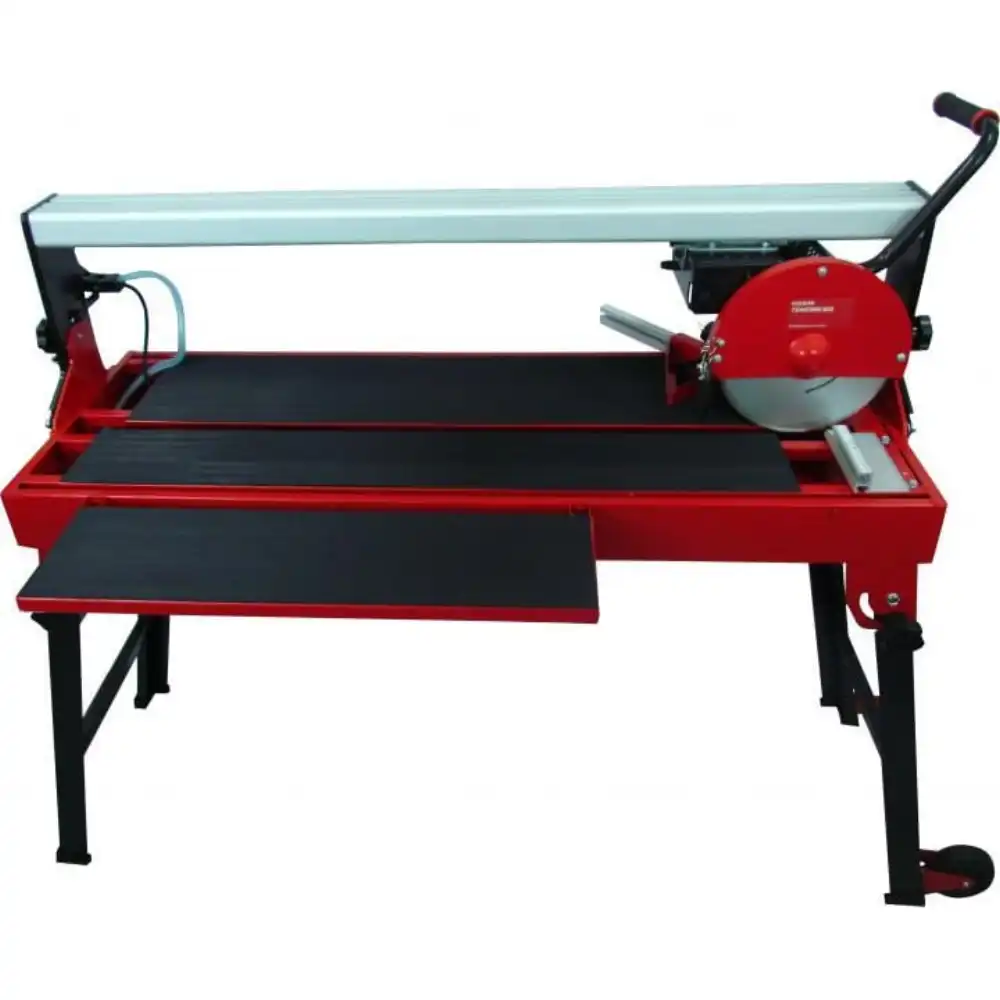

Vulkan TSW230N-920 Electric Tile Cutter

Vulkan TSW230N-920 electric tile cutter

The Vulkan 920 mm is a traditional Chinese electric tile cutter built on proven solutions. Where it beats the competition:
1) the motor is a plunge design, so it is easy to start a cut, to work through in several passes, to nick a cut at the end or in the middle;
2) it has a solid trough that serves as the bath for the coolant and as the mount for the guide rail;
3) the 230 mm blade diameter and the 1200 W motor are enough for a straight cut in 11 mm porcelain stoneware in a single pass. With specialised blades and the right setup it will take a 45 degree chamfer;
4) it has a side extension for cutting wide tile;
5) the guide has been reworked with lengthwise lips and 6 special bearings that stop diagonal movement. The carriage is easy to adjust. The carriage bearings want to be clean and greased. When you buy, I recommend a grease that has proved itself on the job;
6) the water feed into the cutting zone does not ask the hose to climb far, so the pump it comes with is enough;
7) the two table tops lift off easily so the trough can be cleaned out quickly and easily;
8) the table tops are rubber covered, which cuts the noise and stops the tile sliding.
9) the legs fold up under the trough easily and do not get in the way when you wheel it around the site.

Vulkan TSW230N-920 specifications
920 mm – maximum cut length:
42 mm – cut depth:
230 mm – blade outside diameter
25.4 mm – blade bore diameter
1200 W – motor power
230 V – supply voltage
Table size: 950 x 390 mm
51 kg – weight

Country of manufacture China:
Warranty – 12 months
