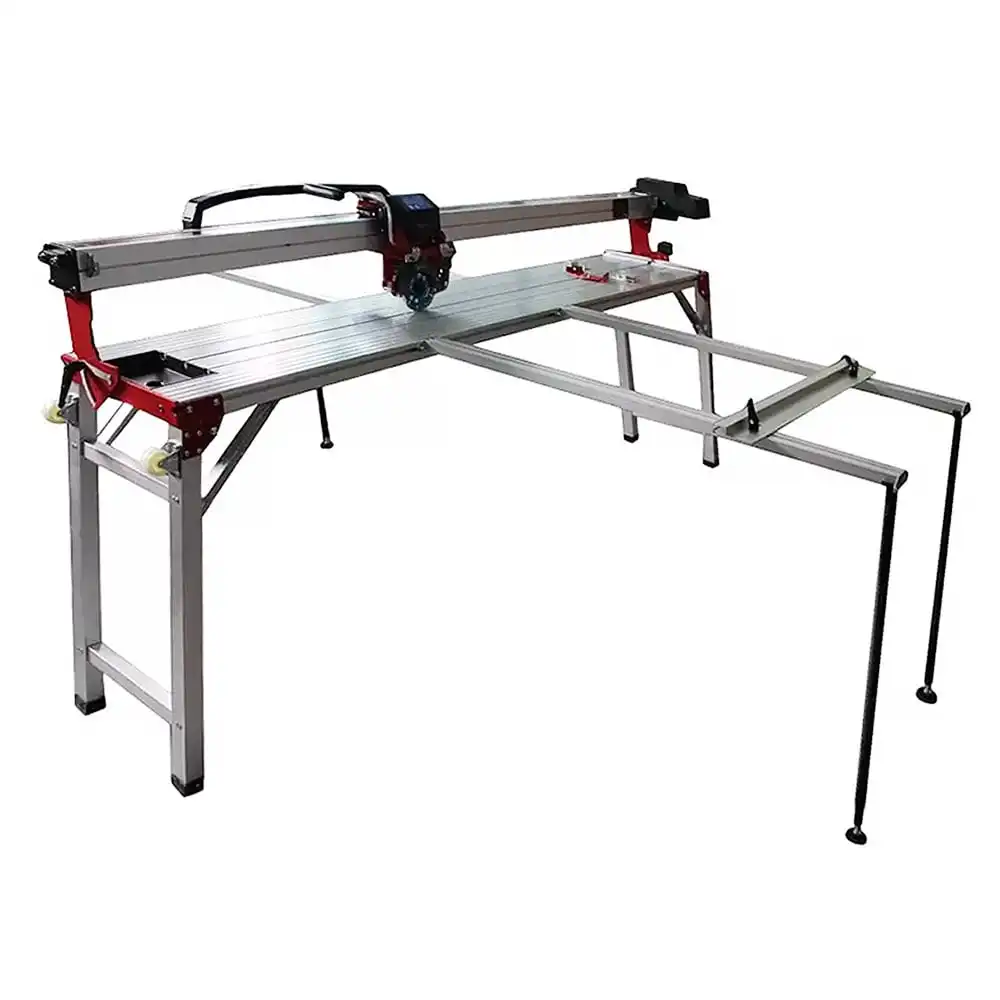

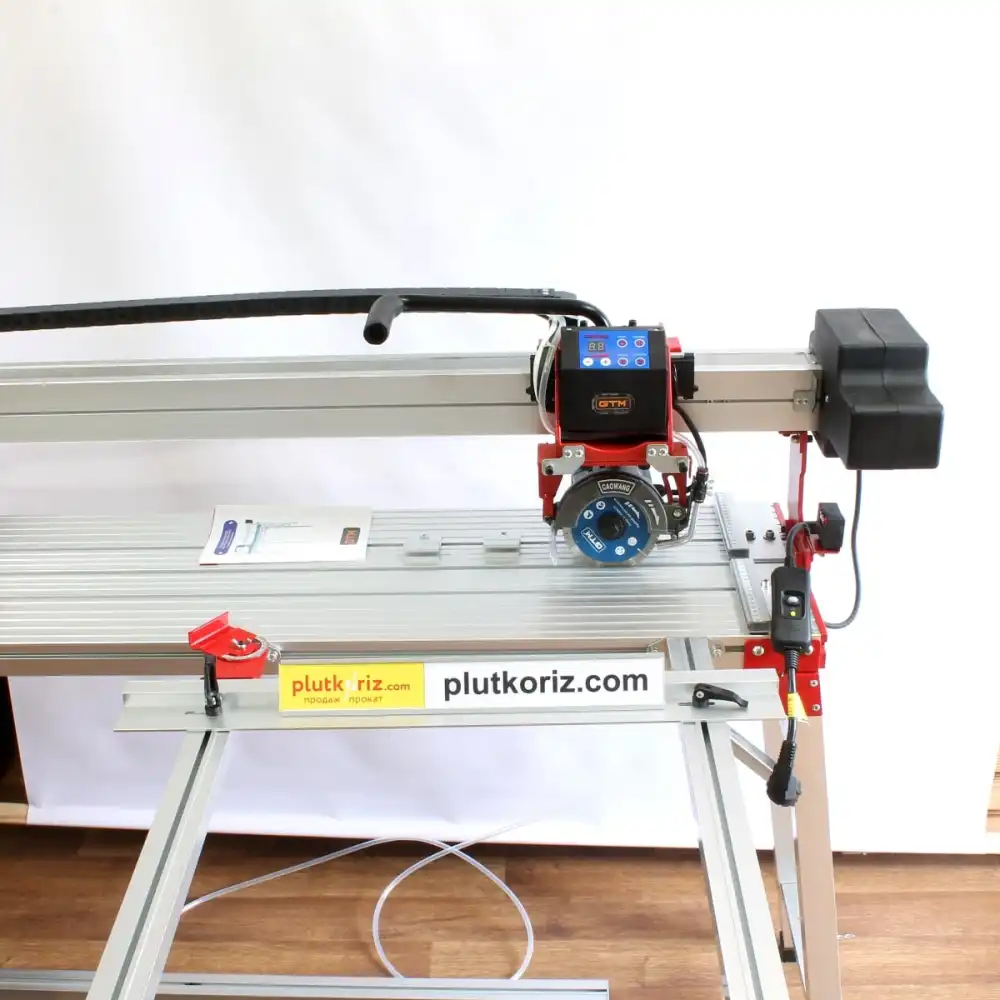

GTM ST1801A Electric Tile Cutter, 1800 mm

GTM ST1801A L tile cutter

The GTM ST1801A is an electric tile cutter meant for cutting porcelain stoneware at 90 degrees and at 45 degrees. The cutter can take off a micro-chamfer, a bullnose chamfer with a finger bit, and it can also cut grooves for strips. Its main job is the 45 degree cut (chamfering). Its special feature is the automatic travel of the carriage with the blade. This cutter, like its rivals Wandeli and Shijing, is at its best on porcelain stoneware. The blade is cooled by water fed into the cutting area.

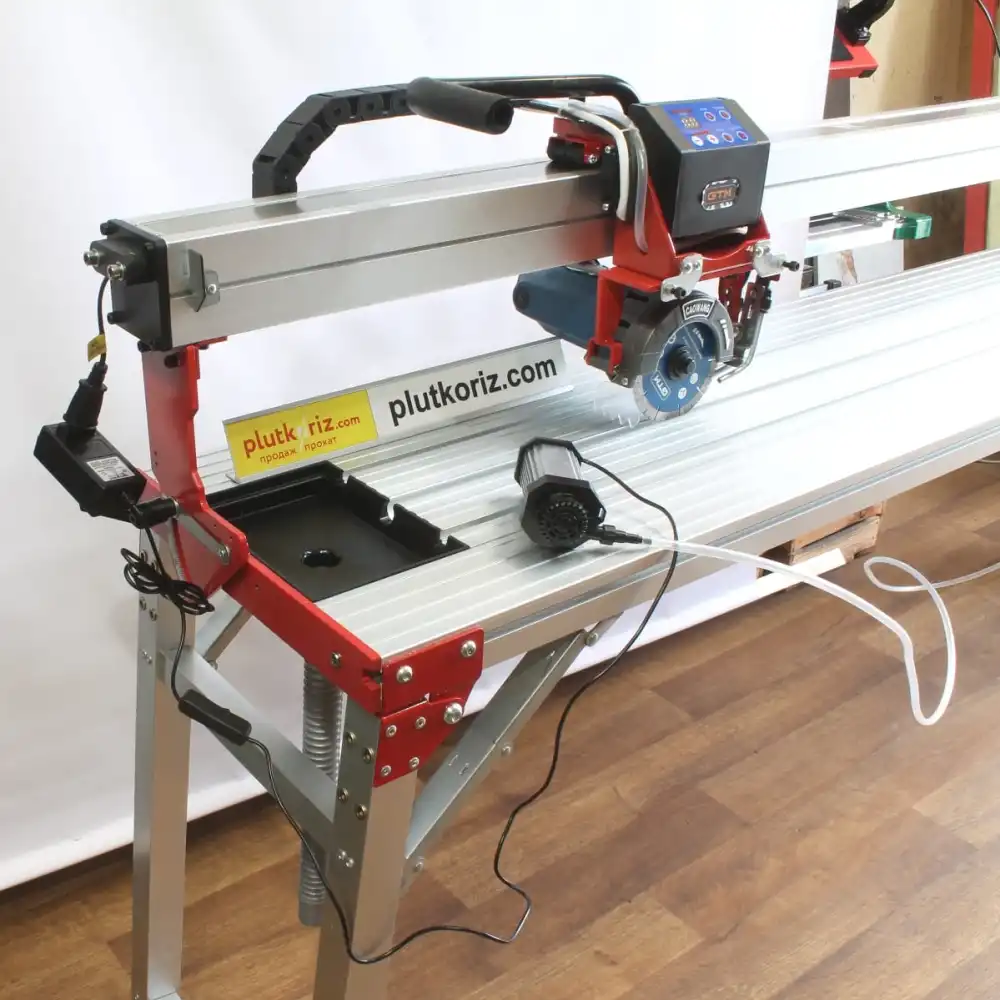

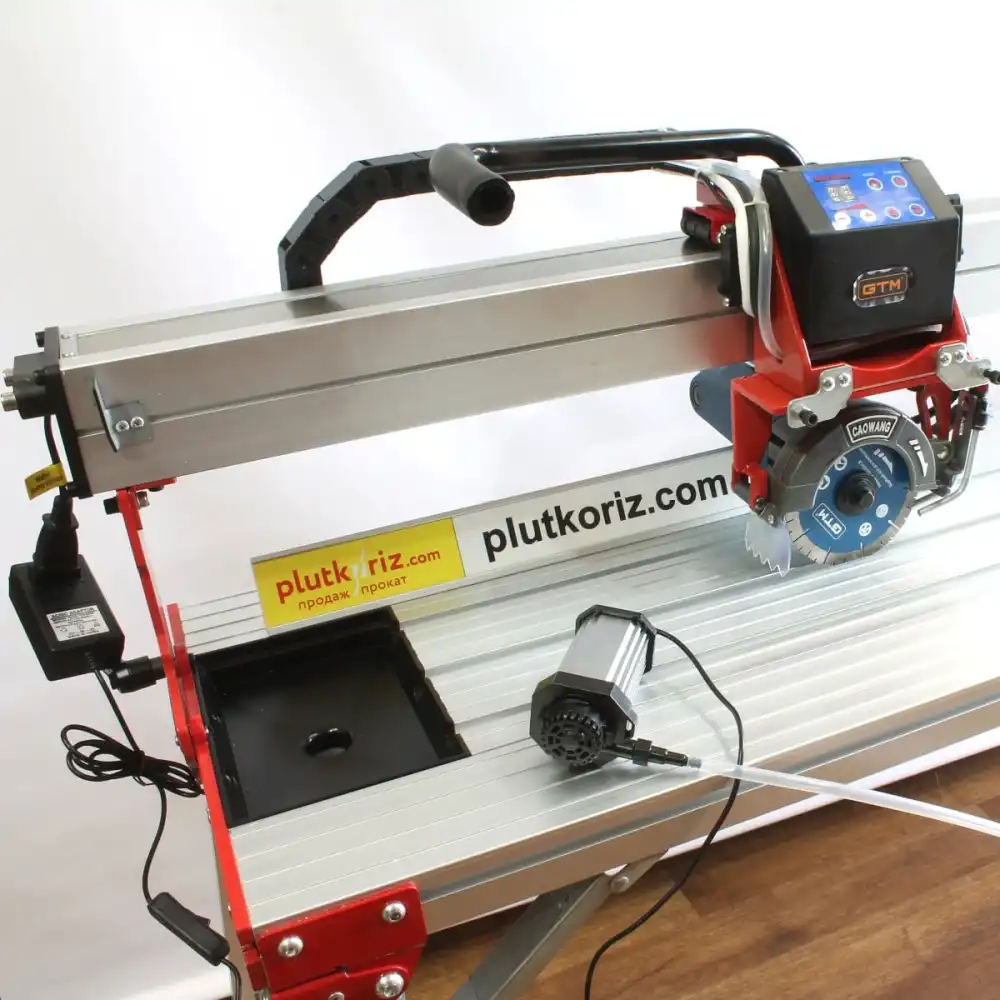

The water is fed by a pump and the pressure can be adjusted. It reaches the blade through two small tubes that can be adjusted. Water feed plus automatic travel at low speed keeps chipping to a minimum. A blade for cutting the hardest porcelain stoneware is included. A finger bit for chamfering is included. The powerful 1750 W brushed motor of the angle grinder type will handle porcelain stoneware up to 19 mm thick in one pass.

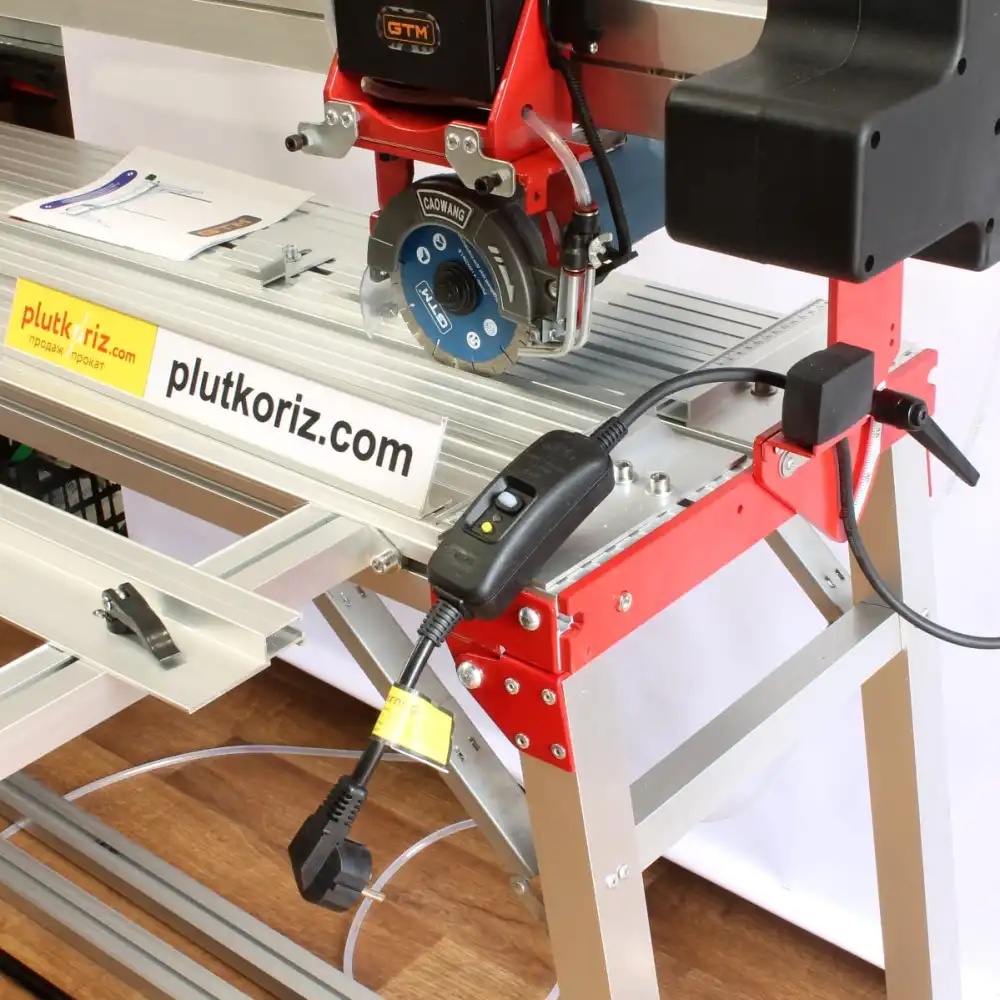

There is a gearbox that lowers the blade mounting axis. The motor with the blade can be raised and locked at any height. The travel speed of the carriage can be adjusted. You can work by hand. There is a mode that returns the carriage to the starting position. There is a residual current device against electric shock. The guide (rail), the side post of the rail and some other parts are made of aluminium.

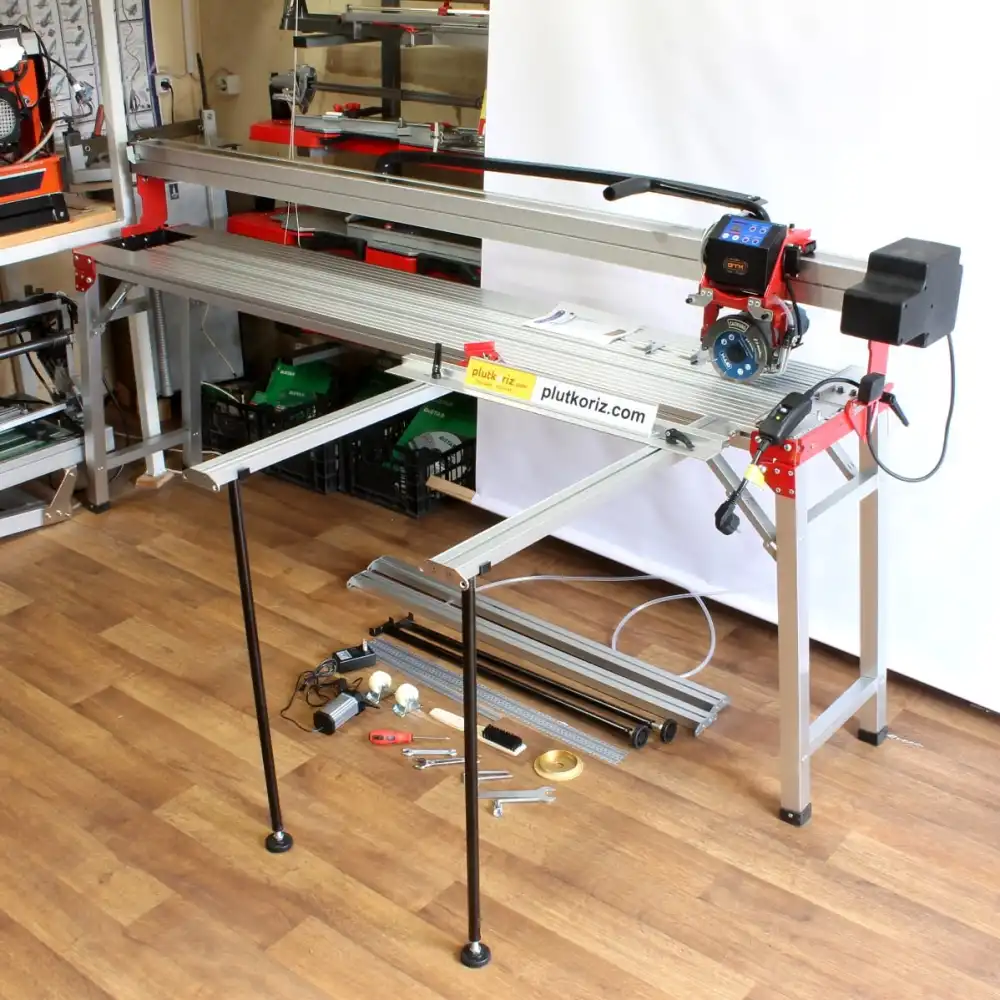

The table is aluminium, so the cutter is very light, only 45 kg. The cutter stands firmly on its legs. The legs fold easily. There are wheels so it can be moved around the site. A red laser is there for quick and easy marking out of the tile.

Advantages of the GTM ST1801A tile cutter

• High-speed 1750 W motor with an armoured stator and rotor
• Blade diameter 120 mm (125 mm), bore 20 mm, rotation speed 14000 rpm.
• Maximum tile cutting thickness 19 mm, cutting length 1205 mm.
• Weight of the machine, kg 45.0

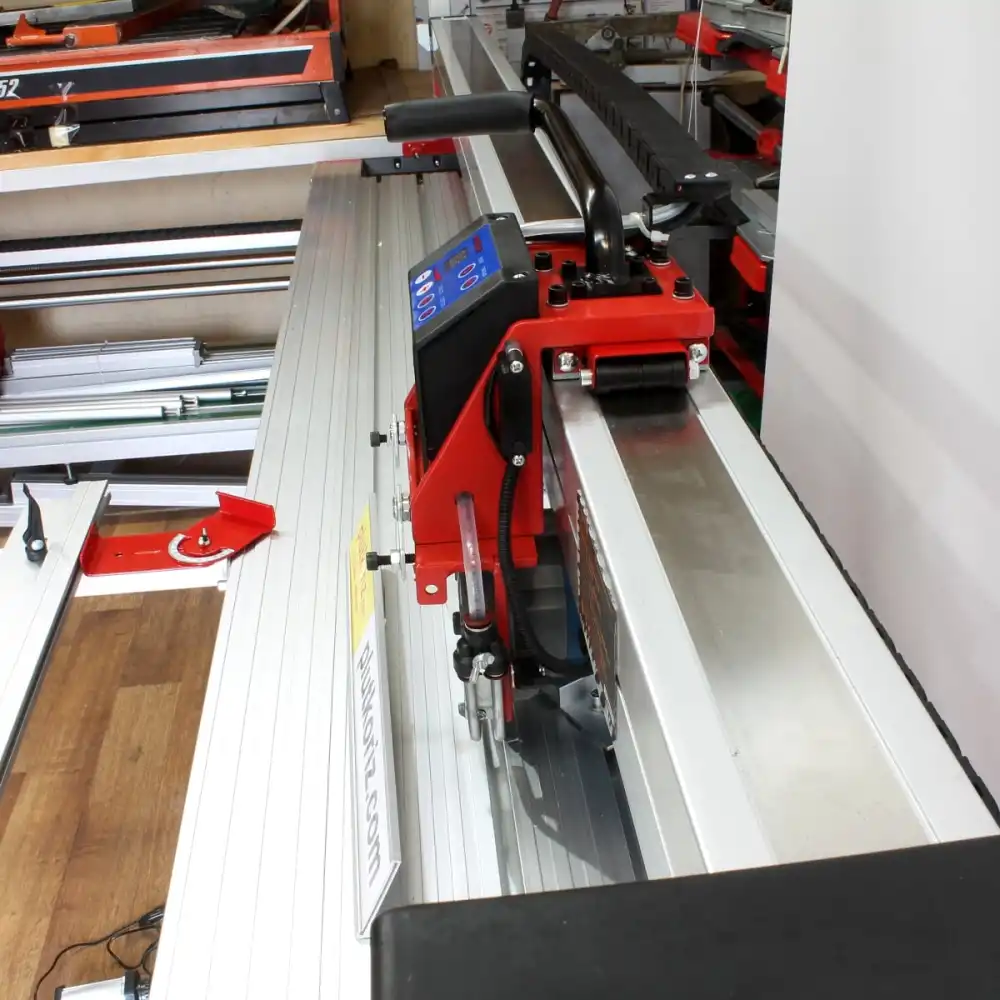

• The motor carriage travels along a steel guide that sits inside an aluminium protective housing with a dust protection system.

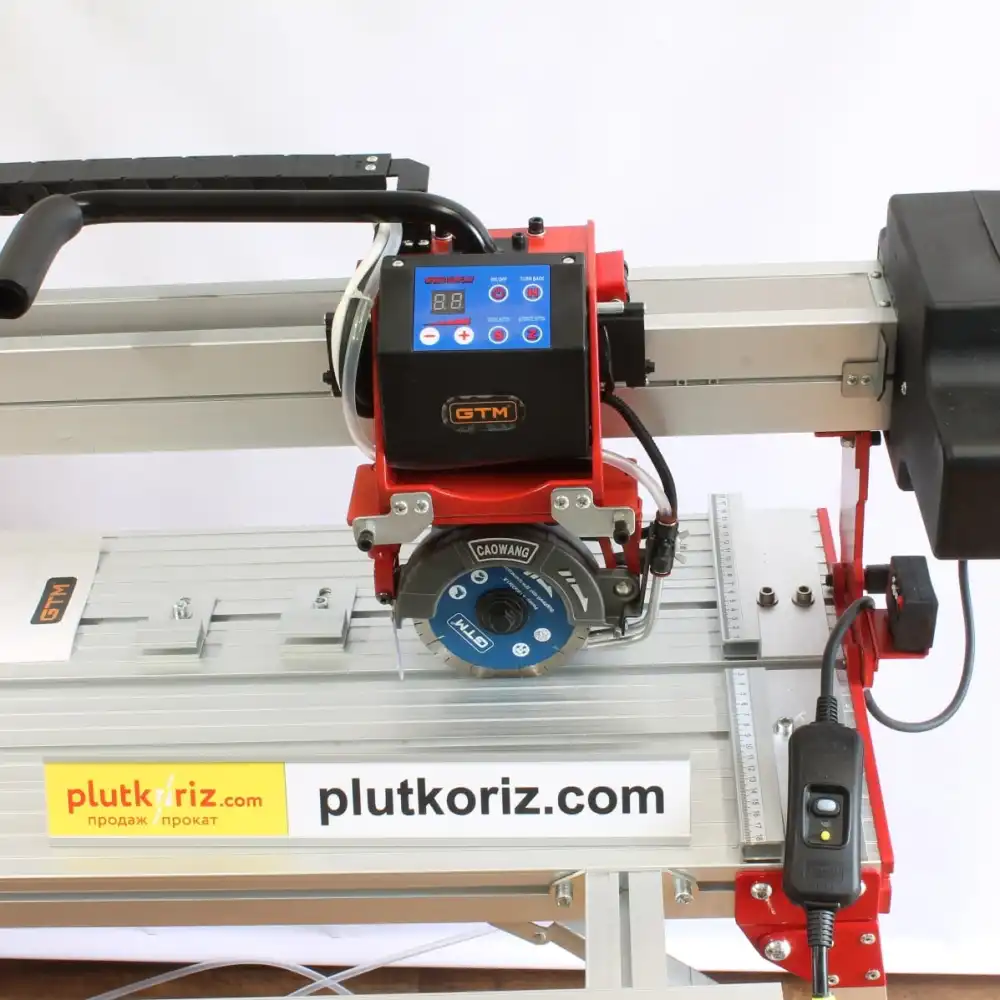

• Control panel with automatic feed of the cutting blade and the option of changing the carriage feed speed.
• Function for automatic return of the carriage with the blade to the starting position.
• Water fed from both sides of the cutting blade gives a clean cut, longer blade life and dust-free work.
• Red laser pointer for the cutting line.
• Compact both set up and folded down.

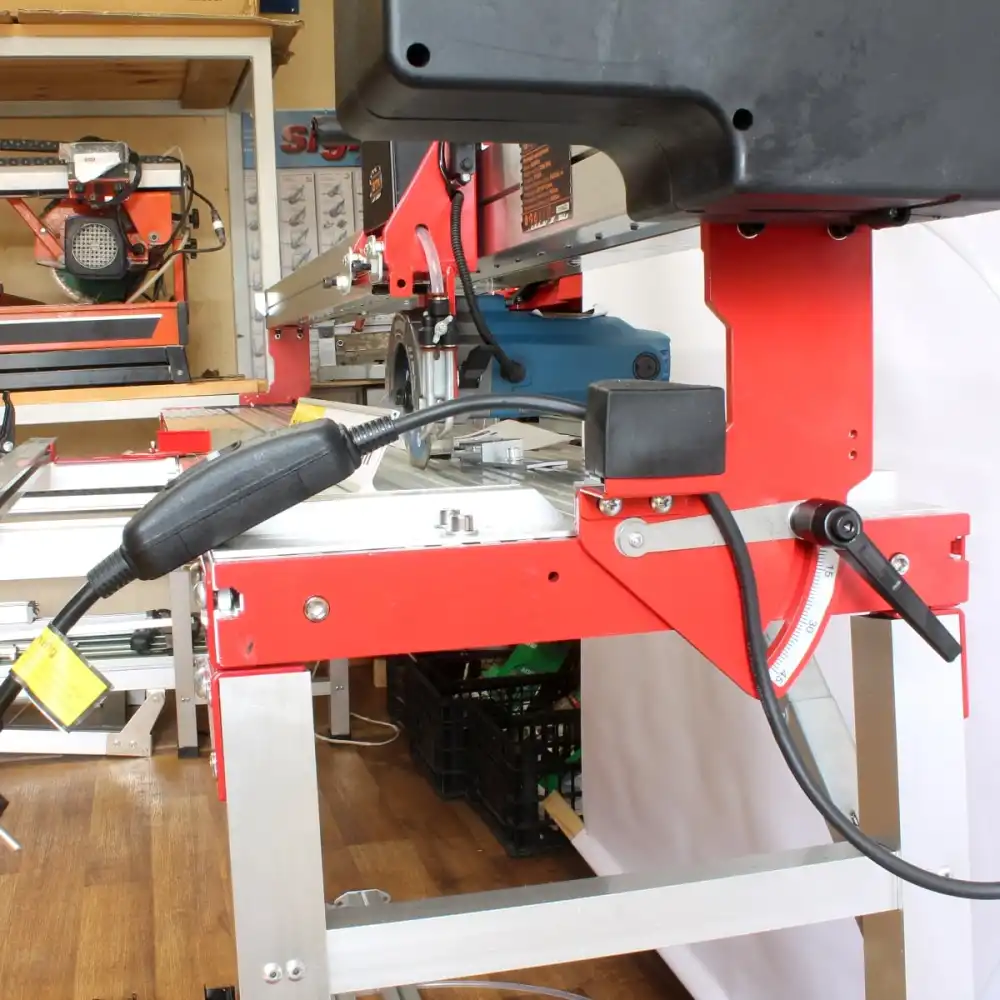

• The cutting angle can be set from 90 to 45 degrees.
• A blade is included, as well as a finger bit for the bullnose chamfer.
• Table extensions, 2 pcs on each side, and two support legs.

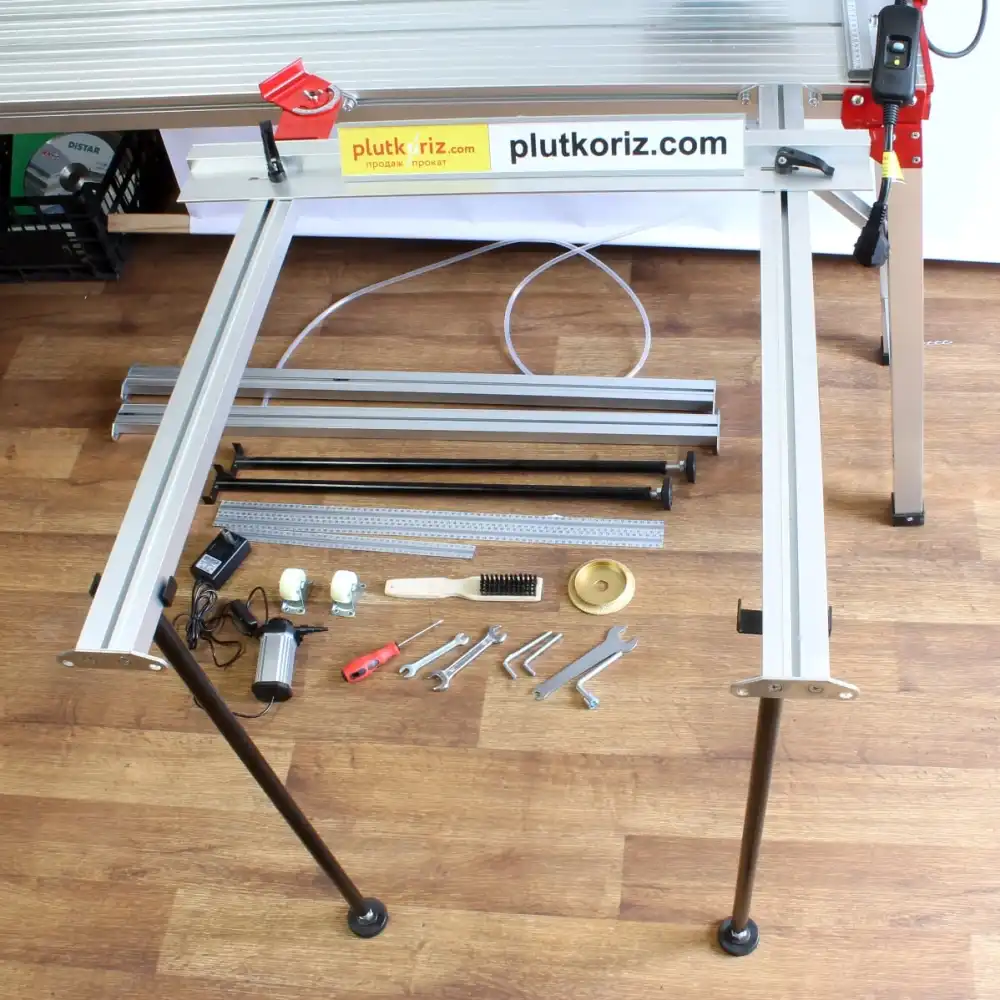

What comes with the GTM ST1801A tile cutter

1. Tile cutter
2. 4 table extensions and 2 support legs
3. Cutting blade
4. Spanners for fitting the blade
5. Finger bit for chamfering
6. Tool set for assembling the cutter
7. Manual
8. Warranty card

The table is aluminium!!!
