Shijing 9601 Rail Cutter with 3300 mm Rail

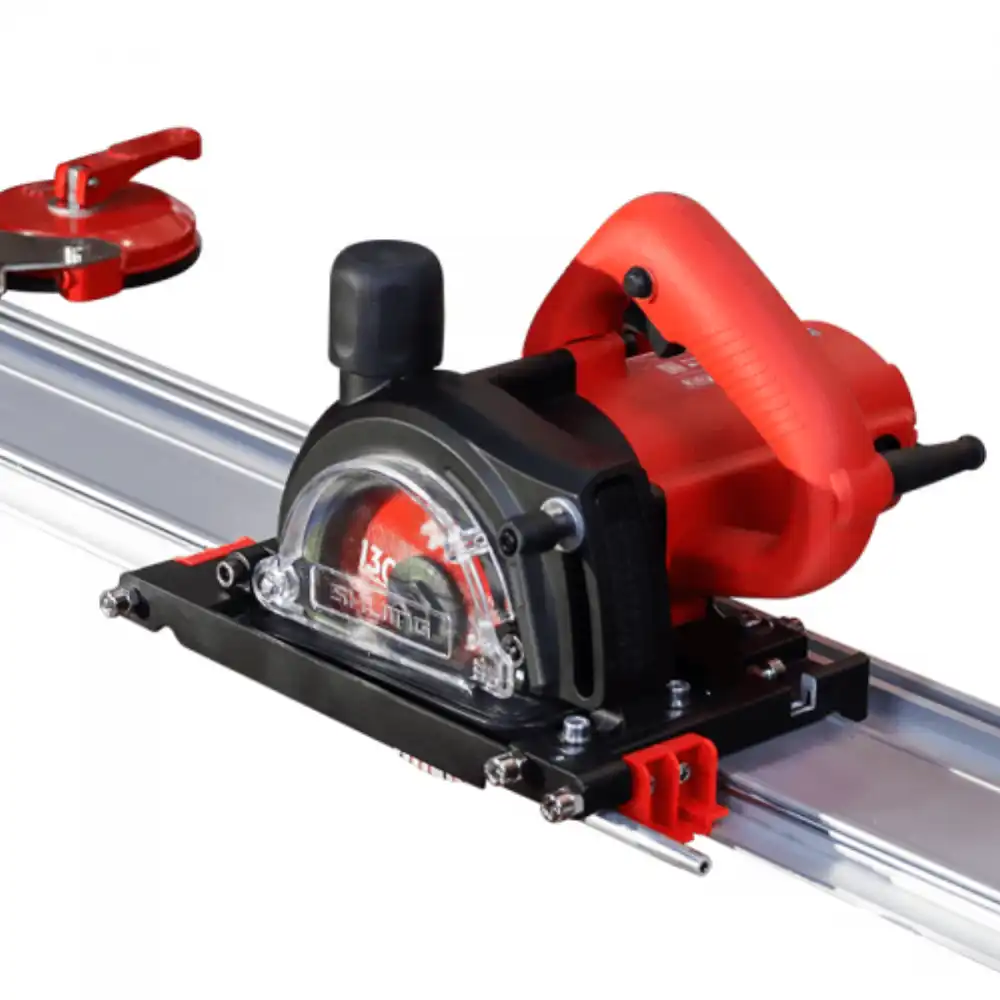

SHIJING 9601 electric tile cutter (cutter head + 3300 mm rail) This electric cutting system is made for straight cuts in large format tile up to 3100 mm in size The system consists of a powerful 1620 W cutter head that takes 115 – 125 – 130 mm blades. The head is a plunge type and can cut tile to a depth of 20 mm. The head runs along two solid bars on concave rollers. Each roller is on a bearing. The head is well shielded against spray. The cutter can cut tile with water fed into the cutting zone, or a vacuum cleaner can be connected. The angle of attack (how parallel the cut runs) is very easy to set on the head with a dedicated adjuster.

Specifications:
– cut length – 3100 mm
– motor power – 1620 W
– speed – 13000 rpm
– cutting depth – 20 mm

In the box:
– the electric cutter head;
– rails – 2 pcs of 1650 mm;
– covers – 2 pcs;
– a set of wrenches;
– a pump for feeding water;
– a 130 mm blade.
