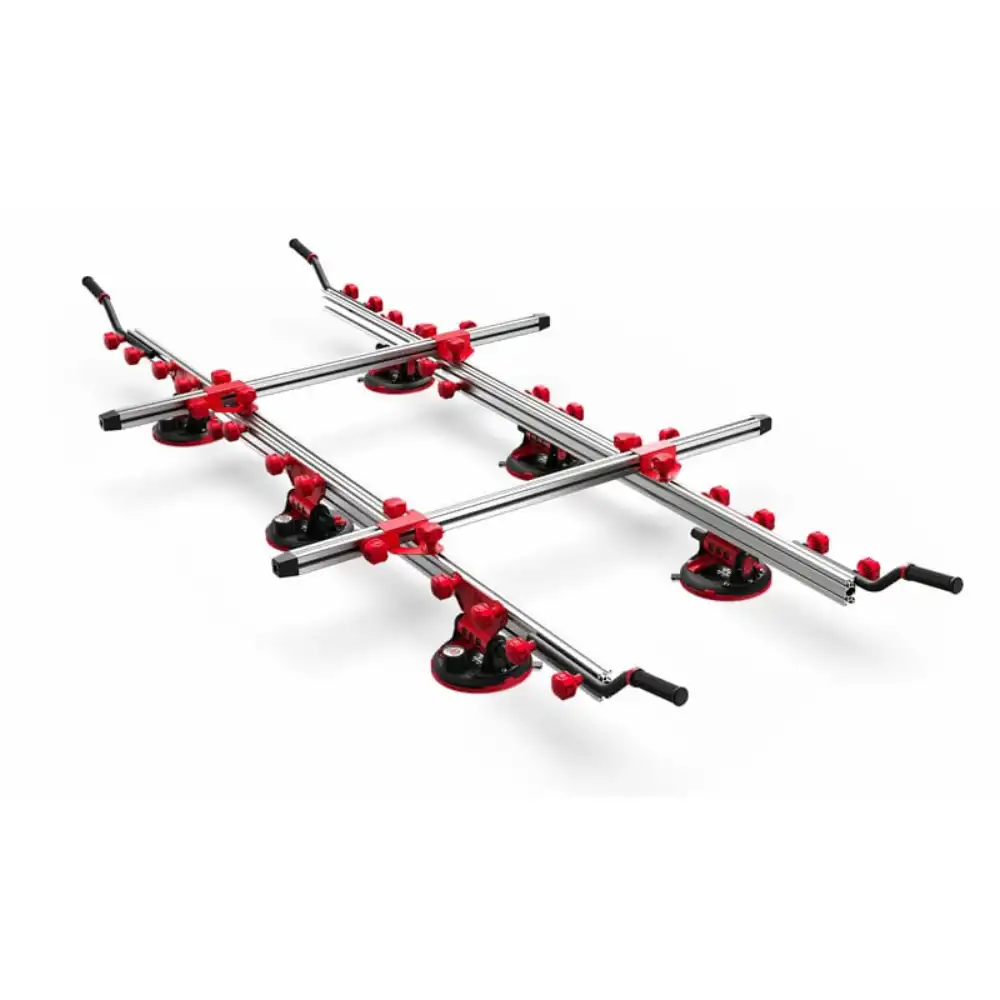

Shijing Slab Carrying Frame

Shijing has come up with a carrier for large format tile. Everything brilliant is simple. The Rubi system was taken as the basis, but everything is made from lighter profile. The system is made of two paired horizontal profiles that slide apart and lock. Three vacuum pump suction cups with pressure gauges are fitted to each horizontal profile. The profiles can be slid apart and locked at any length. Two pairs of vertical profiles come with it, short ones of 1100 mm and long ones of 1600 mm, which you use depending on the width. There are downsides, of course: the profiles can only be fitted perpendicular. The distance between the face of the suction cup and the profile (the width of the carrier) is greater than on the big-name competitors.

Maximum tile length 320 cm
Maximum tile width 160 cm
Maximum tile weight 130 kg
Full weight – 31 kg
Weight in use – 27 kg
