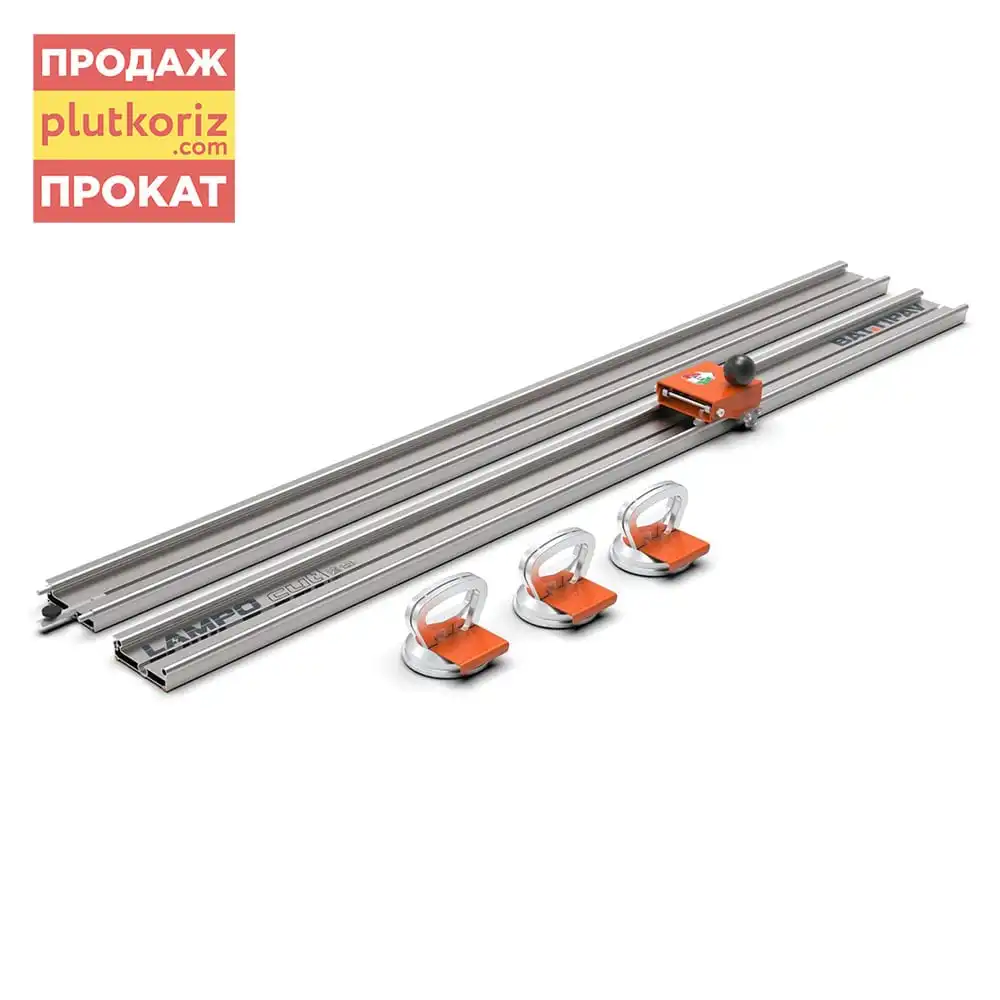

Nuova Battipav Lampo Cut Rail System

Battipav LAMPO CUT specialised cutting system

For working with large format tile. Maximum straight cutting length: 3200 mm.

Advantages of the tool:

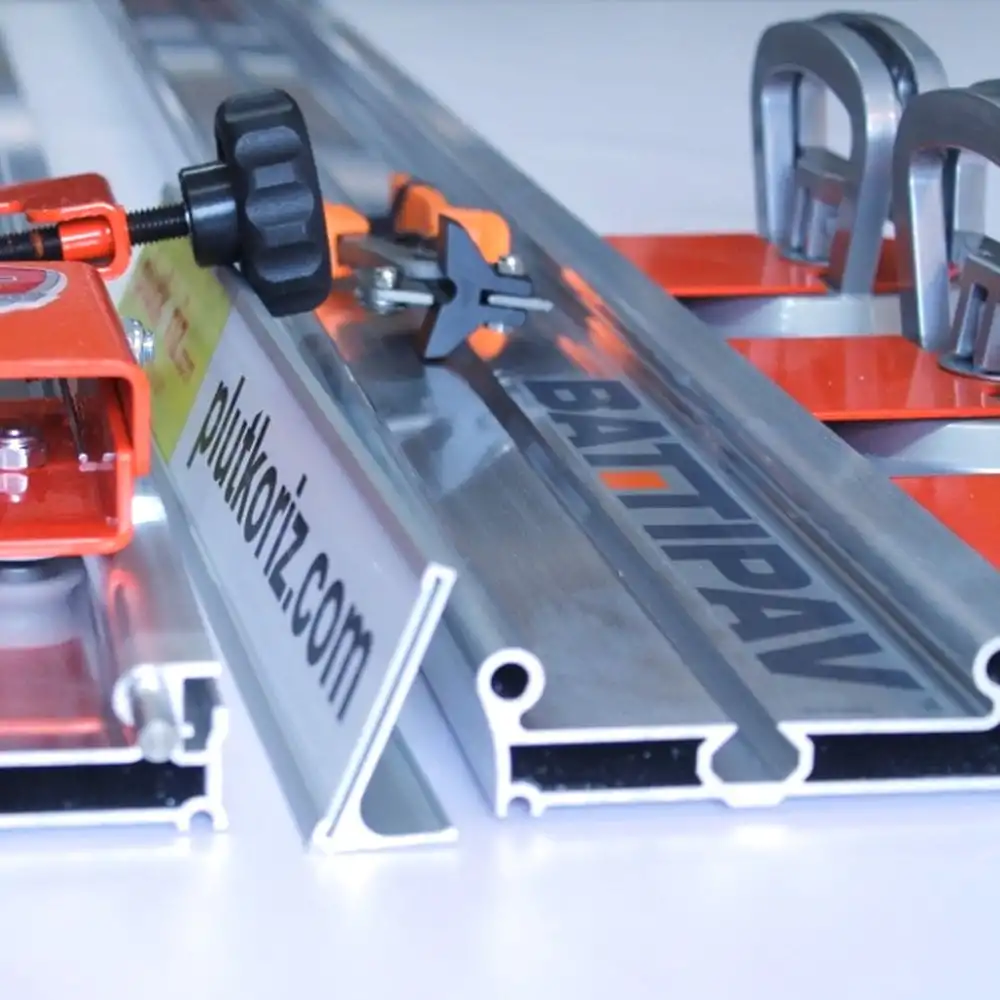

• Strong construction made of two segments that join together securely.
• Special rubber inserts underneath the profile keep the surface of the slab free of scratches and scuffs while you work.
• Fitted with three reliable suction cups – clamps that hold the guide to the material being worked.

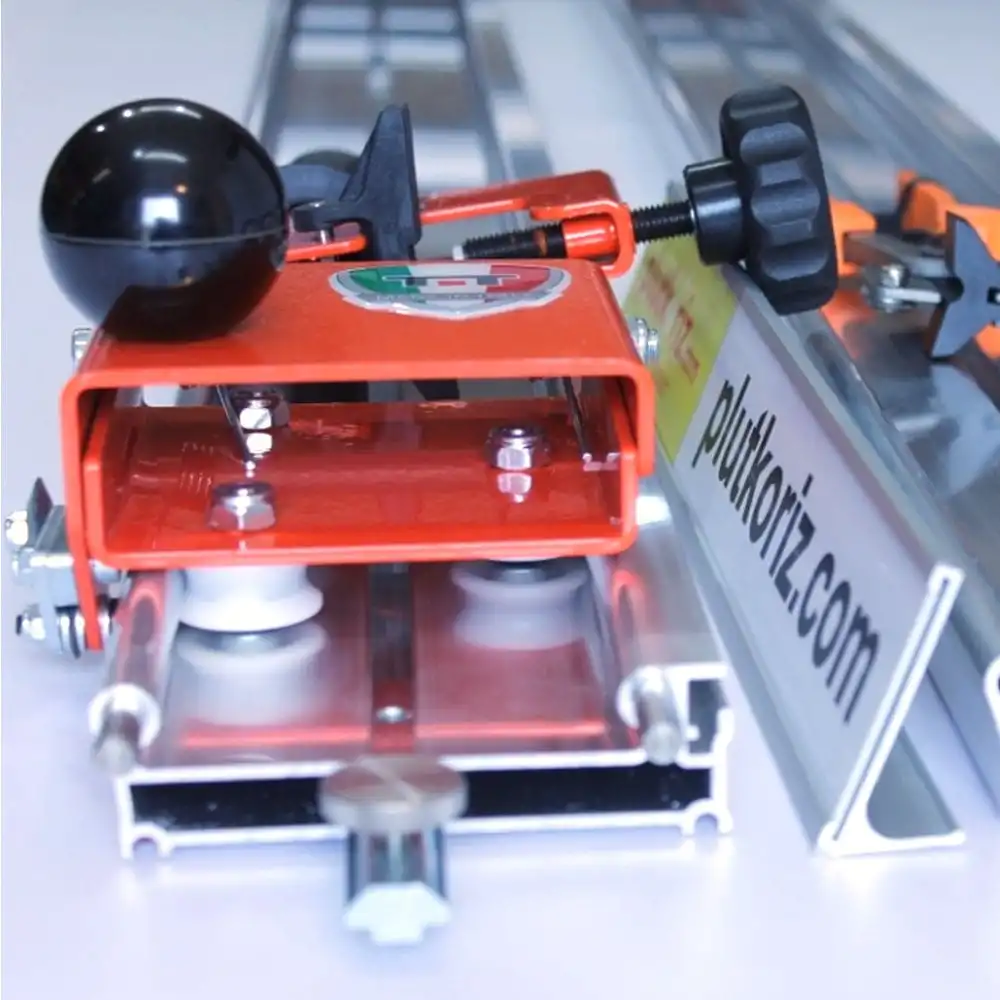

• Reinforced carriage with three nylon wheels that have built-in ball bearings for the smoothest possible travel.
• Supplied with two scoring wheels: 15 mm diameter (for delicate cutting) and 22 mm (for hard tile).

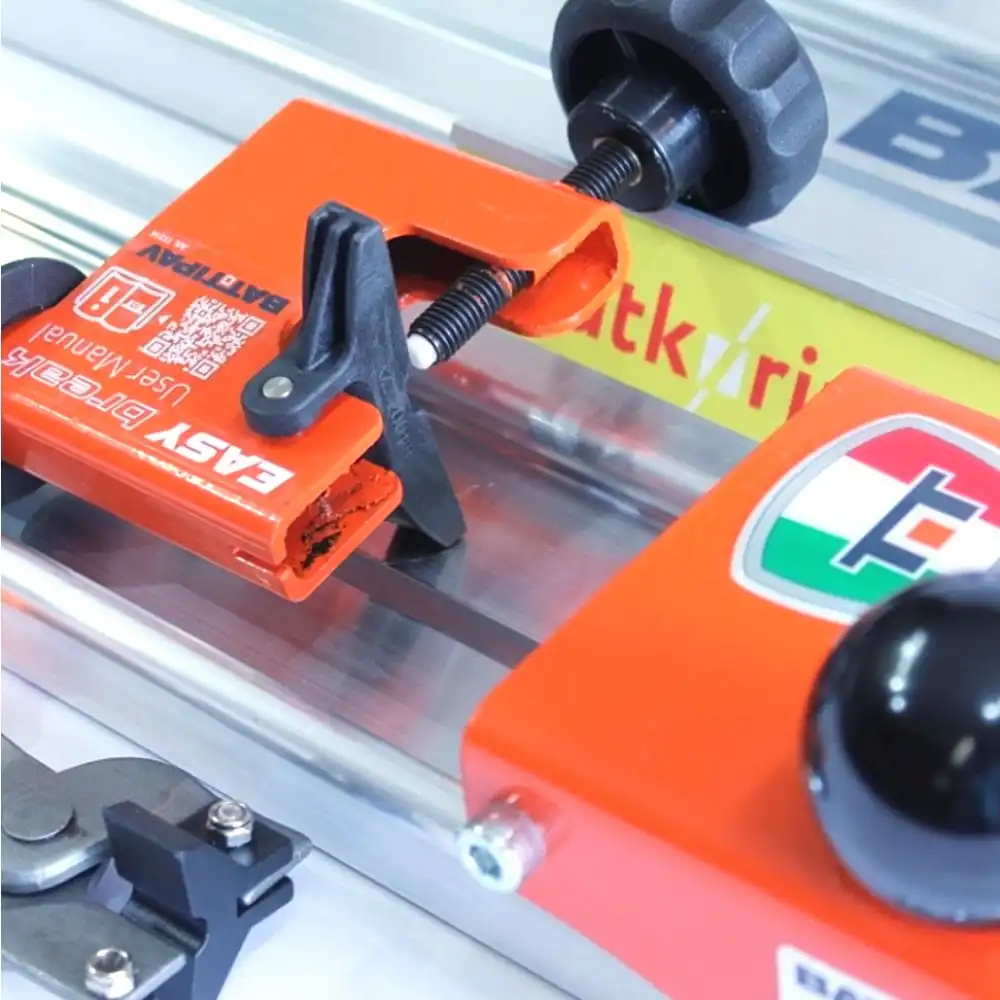

• A handy hand breaker for the tile is included.
• Length of one rail – 1690 mm.

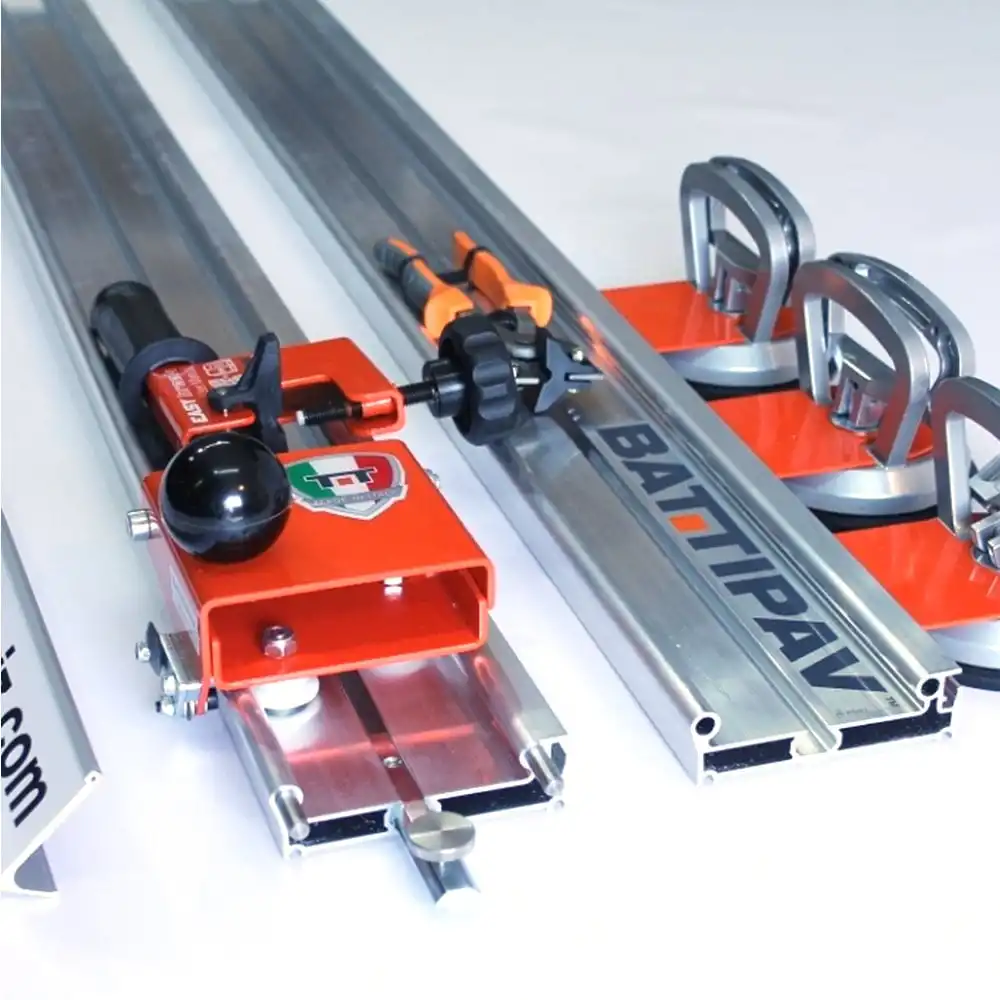

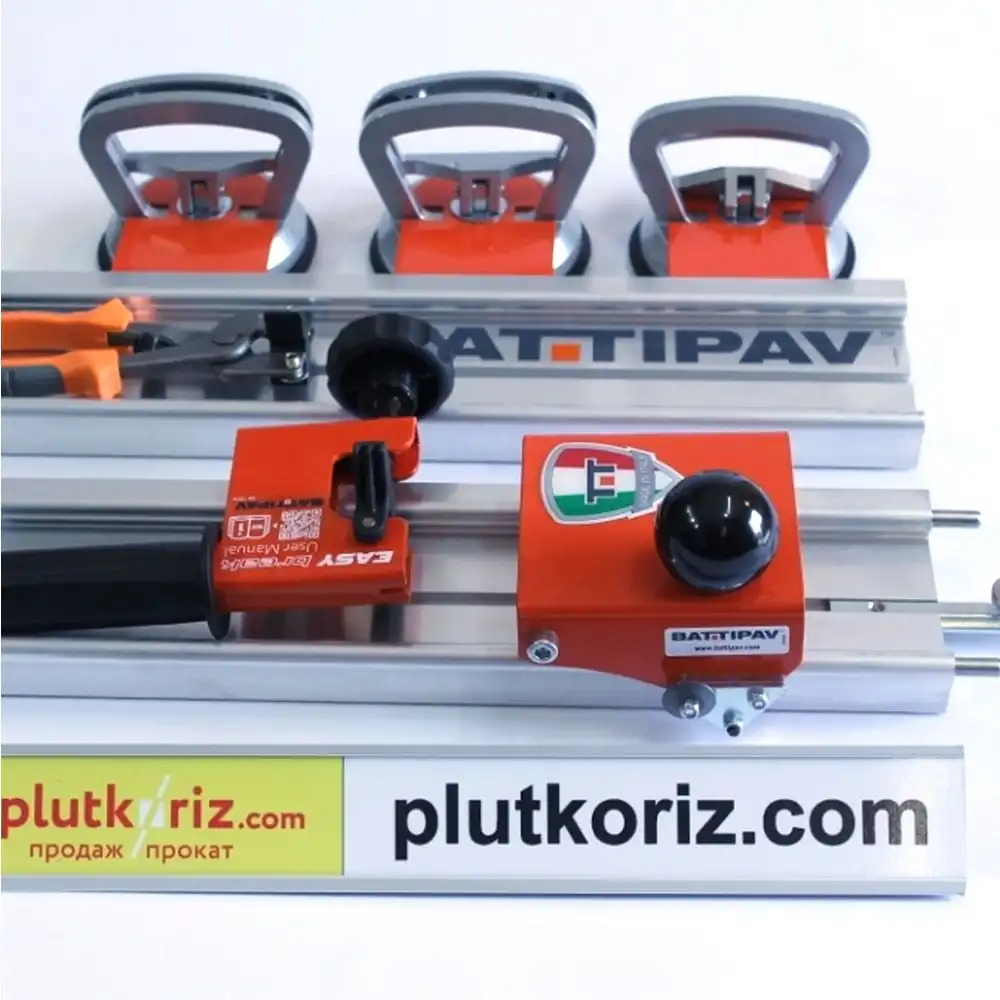

The delivery set includes:

• 2 guide rails;
• 3 suction cups;
• 1 carriage;
• 2 scoring wheels (15 mm wheel – tile up to 7 mm, 22 mm wheel – up to 25 mm);
• Breaker for tile up to 25 mm thick – (the best of the ones I know, going by the test cuts) ;
• Breaking pliers for tile 7 mm thick.
