Raimondi Power Raizor MkII Frame

Raimondi POWER RAIZOR MkII frame

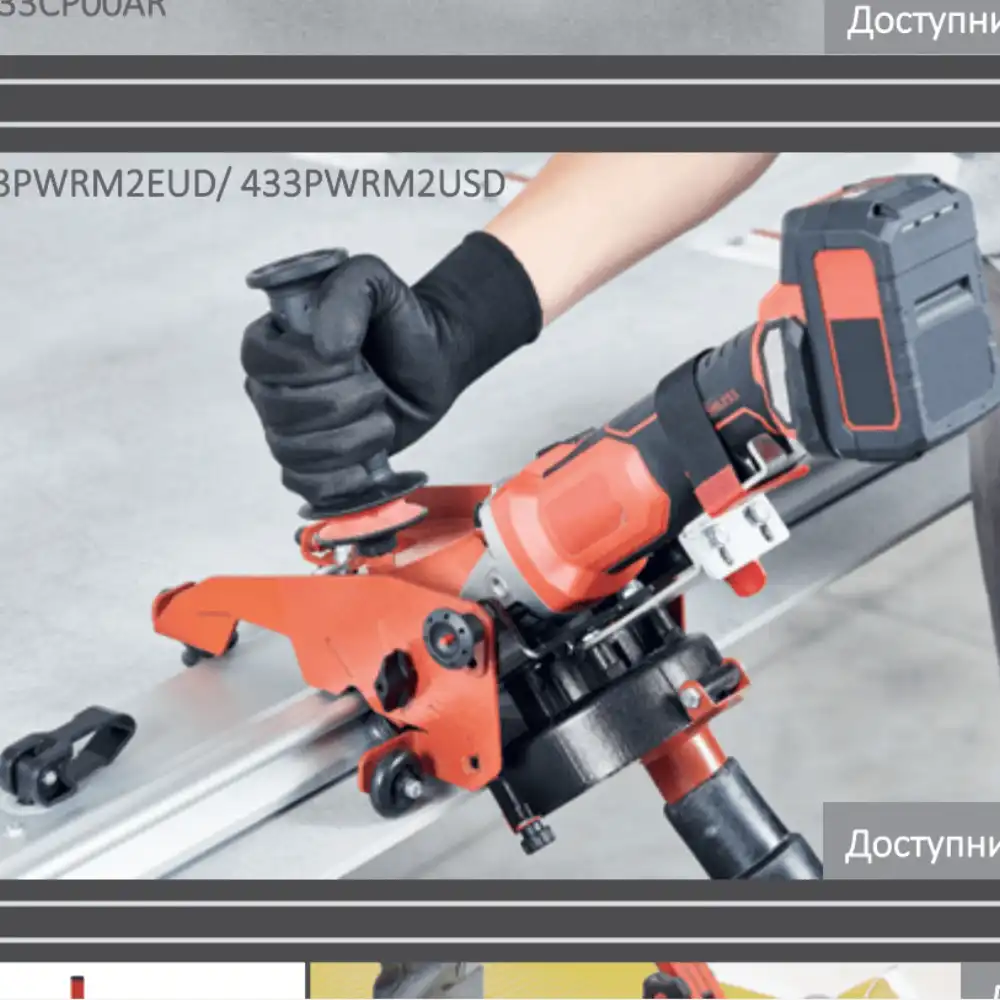

The POWER RAIZOR MkII is the cutting unit for the RAIZOR MkII. It mounts on the RAIZOR MkII guide rail (not compatible with the first version of the RAIZOR). It makes cuts at 90° (through cut) and 45° (“mitre”; effective angle 47°). A pivoting mechanism (plunge) for setting the cutting depth and for making grooves, square and rectangular openings, and cuts in several passes.

Compatible with most popular makes and models of angle grinder (grinder not supplied). A version is available for grinders with M14 and 5/8″-11 spindle threads.
It can be used dry (standard kit) or with water cooling (accessory). It has a port for dust extraction. Cutting thickness: 20 mm at 90°; 16 mm at 45°.
