Montolit Masterpiuma 93P3 Manual Tile Cutter, 930 mm

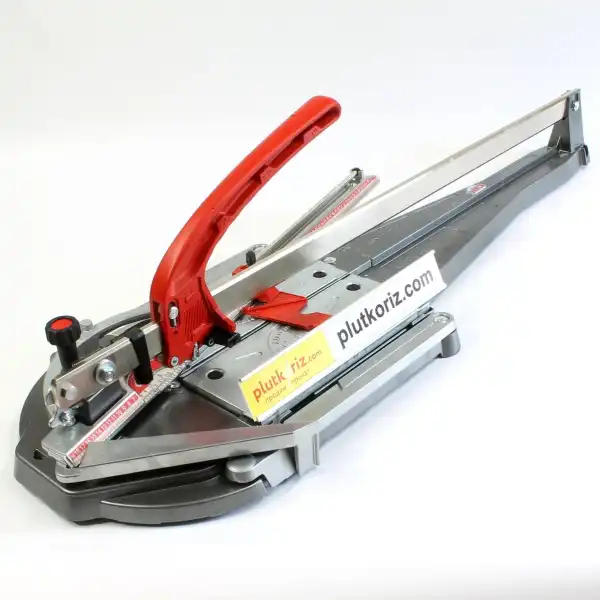

Montolit Masterpiuma 93P3 tile cutter

The Montolit Masterpiuma 93P3 is a powerful, accurate, innovative tile cutter, 100% Made in Italy. This line of professional cutters will cut every kind of tile from 0 to 22 mm thick, accurately and fast.
It is also perfect for diagonal and mosaic cutting.

Advantages:

• Long lasting. Designed to serve for years and to let you cut ceramics, porcelain stoneware, glass tile and mosaic of any thickness with ease.
• The breaking system on this series of cutters combines extraordinary accuracy with maximum ergonomics, which spares the tiler physical trouble.
• The patented micro-impact system of the wheel makes scoring tile of various thicknesses much easier and faster.
• Setting the cutter up, carrying it and then storing it are extremely simple and quick thanks to the folding design, which needs no dismantling and reassembling of any part of the cutter.

The protractor of the cutter has two measuring scales. The first, set on the sloping part, refers to the side of the tile and gives the correct measurement for all angles. The second scale, shown on the upper part of the square, gives the diagonal measurement for cuts at 45°.

The tool holder handle has plenty of features:

A dual breaking system that works both on ordinary cuts (with no need to pull the handle back after the scoring phase) and on cuts at the corner of a tile or a mosaic, and switches with one simple movement.
A built-in oiler for the tungsten carbide scoring wheel (titanium coated), which the operator controls as needed by pressing lightly straight on the dispenser.

The R.A.S. group (Roller Adjustment System). A cylinder of anti-friction, wear resistant material that always keeps contact with the bar/crossbeam, effectively removing any sideways movement, guarantees a perfect glide of the tool holder and therefore an extremely accurate cut.

Features of the cutter:

This cutter is built of die-cast aluminium and nickel plated steel for maximum strength and protection from the weather. The cutting bed of the machine is made of a special scratch resistant plastic. A standard titanium wheel (made specially for porcelain stoneware), the square and an extension that folds away completely within the overall size of the machine. Sprung shelves for safe tile breaking and a removable support bar for large tiles (only on the 63P3, 75P3, 93P3, 125P3 and 155P3 models).

SPECIFICATIONS

Maximum cut length: 93 cm
Diagonal cut length: 66×66 cm
Maximum cut thickness: 0 – 22 mm
Weight: 13 kg
