Bihui Max TCS1200 Manual Tile Cutter, 1200 mm

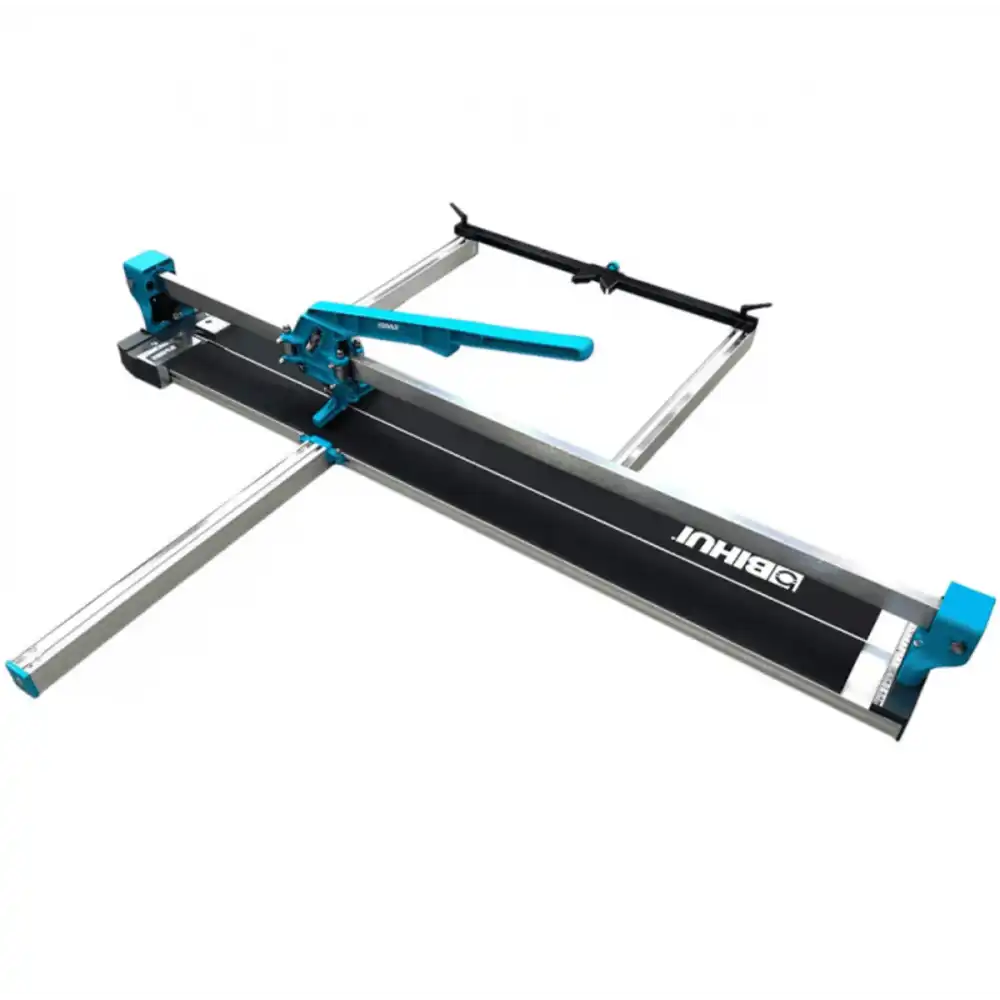

BIHUI MAX 1200 manual monorail tile cutter with a red laser (TCS1200)

The BIHUI brand has started supplying its own version of manual tile cutters with a 1200 mm cut length. Cutting thickness in porcelain stoneware is 12 mm. A quick run through the advantages:
1) the cutter has a strong solid rail 20 mm wide x and 38 mm thick.
2) the carriage with the handle and the scoring wheel mounts firmly on the rail. The carriage runs on 8 bearings on one side and 8 bearings on the other. Two bearings on top and two underneath. The bearings can be drawn together so there is no play
3) a good 22 mm scoring wheel on a bearing is fitted under the carriage;
4) the carriage has an enormous handle, which makes breaking porcelain stoneware easy;
5) the base of the cutter is aluminium with stiffening ribs;
6) the base has short rulers front and back to speed up cutting narrow tile;
7) the cutter has side stops, used for repeat cutting wider than 11 cm or for diagonal cuts;
8) the breaker foot folds away, which lets you break along the whole length of the tile.
9) by the main ruler, where most of the breaking happens, the aluminium base is reinforced with a steel plate;
10) the pressure pad is two-layer, strong and hard on top and soft underneath at the same time.
11) the handle self-adjusts for different tile thicknesses.
