V.GRAN 3 Universal Chamfer Slider

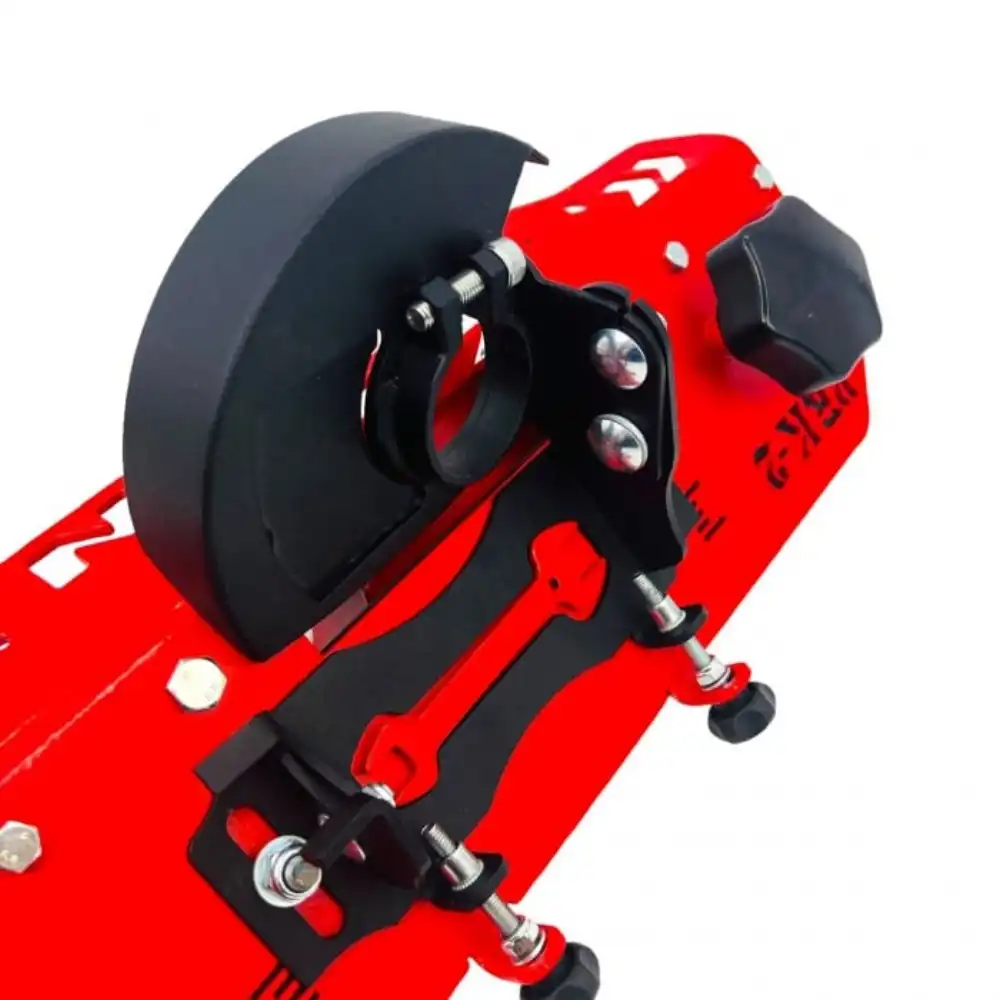

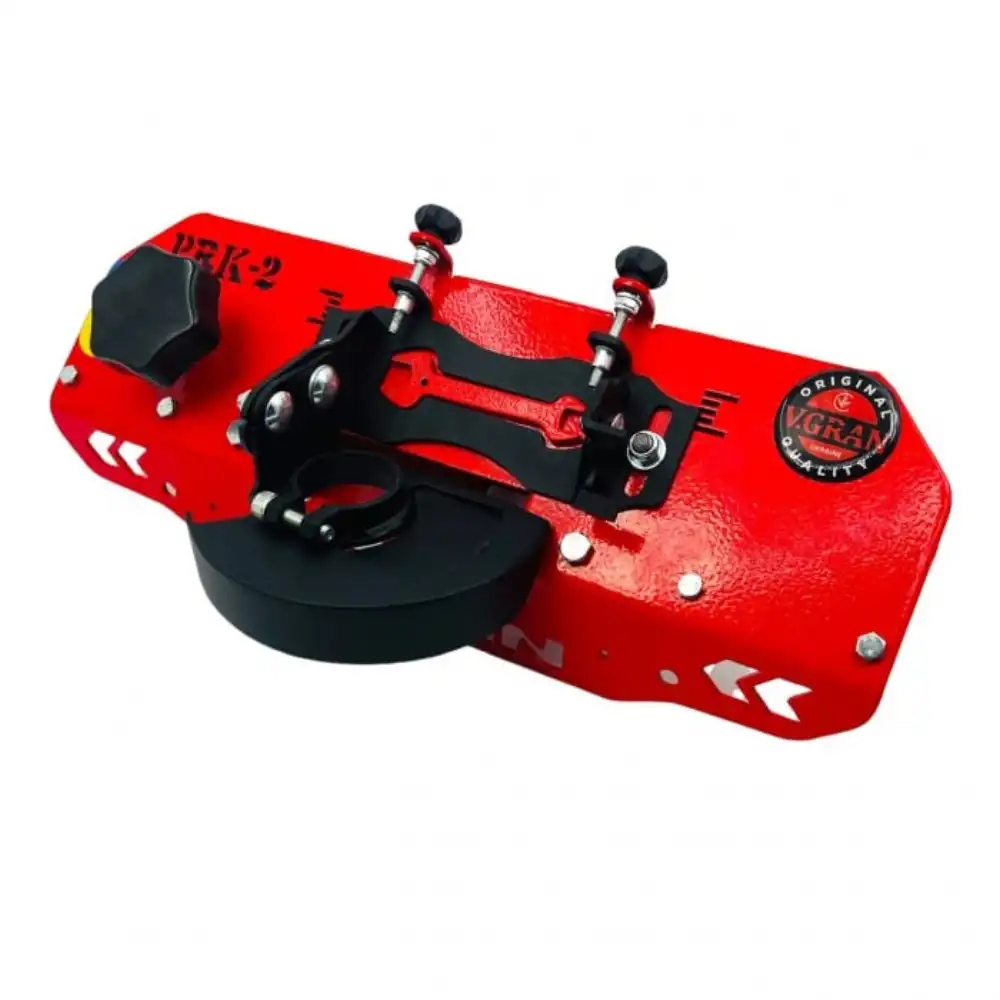

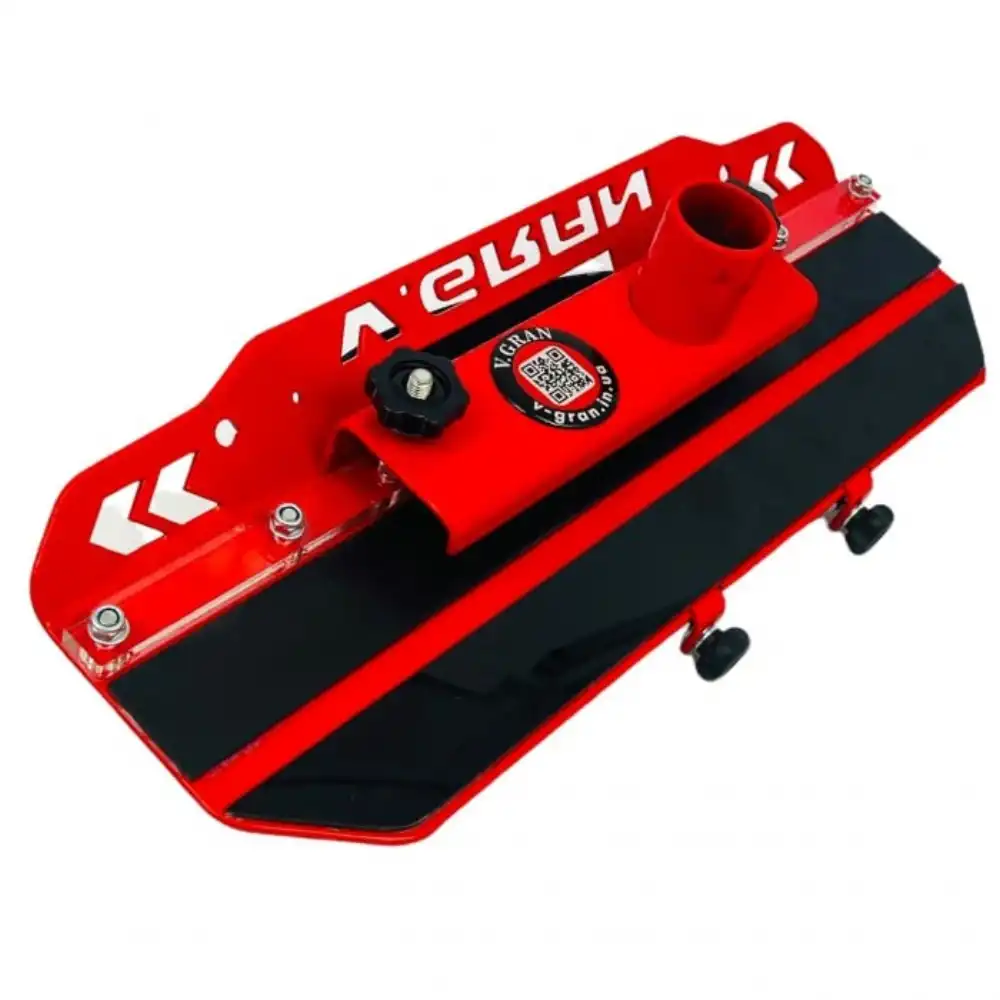

V.GRAN 3 universal chamfer slider.
The slider is made for cutting chamfers and cutting at 45 degrees. What sets it apart is how universal it is. Bosch, Makita and other grinders with a small flange (rated no more than 1100 W) can be fitted to it. The flange mount is reinforced as far as it will go, which holds the grinder solidly in the slider. For a perfect 45 degree cut the angle can be set anywhere between 40 and 50 degrees. The slider comes with a handle. Against the edge of the tile the slider can run on 6 bearings or on two sliding plates. On top it slides over the tile on plastic runners. There is an adjustment mechanism that lets you set the shank mounting so nothing sits crooked. Chamfer depth and angle of attack can both be adjusted. Wheels 115 – 125 mm in diameter are used

List of angle grinders the V.GRAN slider will fit:

Angle grinder Makita GA 5030 – 40 mm
Angle grinder Makita GA 5050 – 42,5 mm
Angle grinder Makita 9565 – 42,5 mm
Angle grinder Makita DGA506 – 42,5 mm

Angle grinder Bosch GWS 670 – 42,5 mm
Angle grinder Bosch GWS 750 – 42,5 mm
Angle grinder Bosch GWS 750 s– 42,5 mm
Angle grinder Bosch GWS 9-125 s– 42,5 mm
Angle grinder Bosch GWS 180 LI – 42,5 mm

Angle grinder Metabo W 650-125 – 46 mm
Angle grinder Metabo W 750-125 – 46 mm
Angle grinder Metabo W 850-125 New – 46 mm
angle grinder Metabo W 18 7-125 – 45,5 mm
Angle grinder Metabo W 18 L 9-125 – 45,5 mm

Angle grinder DeWALT DWE4057-QS 44 mm
Angle grinder DeWALT DWE4257-QS 44 mm
Angle grinder DeWALT DCG405 44 mm
Angle grinder DeWALT DCG409 44 mm
Angle grinder DeWALT DCG416B/B 41 mm
Angle grinder DeWALT DCG412 44 mm
Angle grinder DeWALT DWE4051 44 mm
Angle grinder DeWALT DWE4121 44 mm
