Huepar S04CG Laser Level, 4 Planes Green Beam

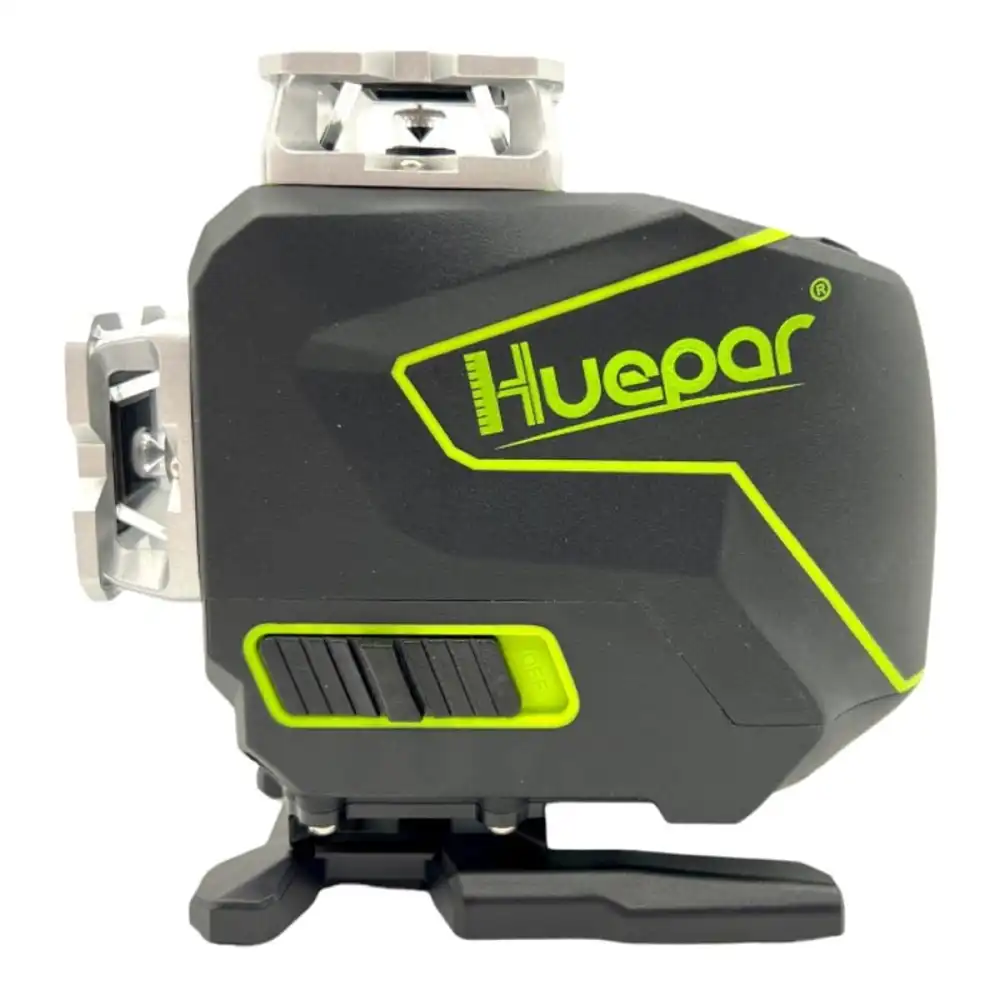

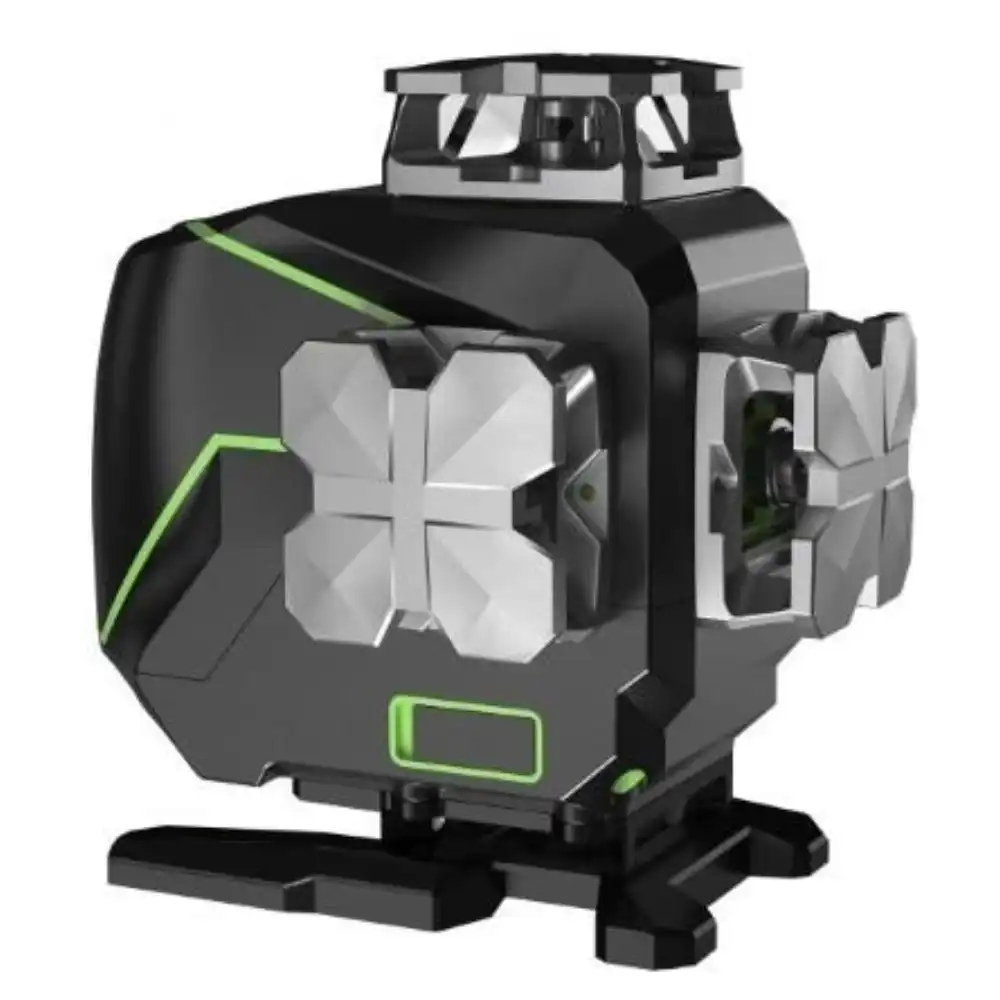

Huepar S04CG green 4-plane laser level

The Huepar S04CG is a professional laser level (plane projector) with four laser diodes that give four mutually perpendicular 360° laser planes (two vertical and two horizontal). The plane switching mode is well thought out. There is a function for working with the pendulum locked at an angle. It runs off a Li-ion battery (included).

What sets the Huepar S04CG apart is that you can switch the planes with the remote or from a smartphone, thanks to the Bluetooth module!

This unit can also work with a receiver at up to 100 m (not included).

Features of the Huepar S04CG laser level:

• Projects 16 lines (2 vertical planes and 2 horizontal);
• rubberised impact-resistant housing, IP54 moisture protection;
• enlarged protective caps over the laser diodes;
• pendulum lock for marking out on a slope;
• built-in inclinometer (on the X and Y axes);

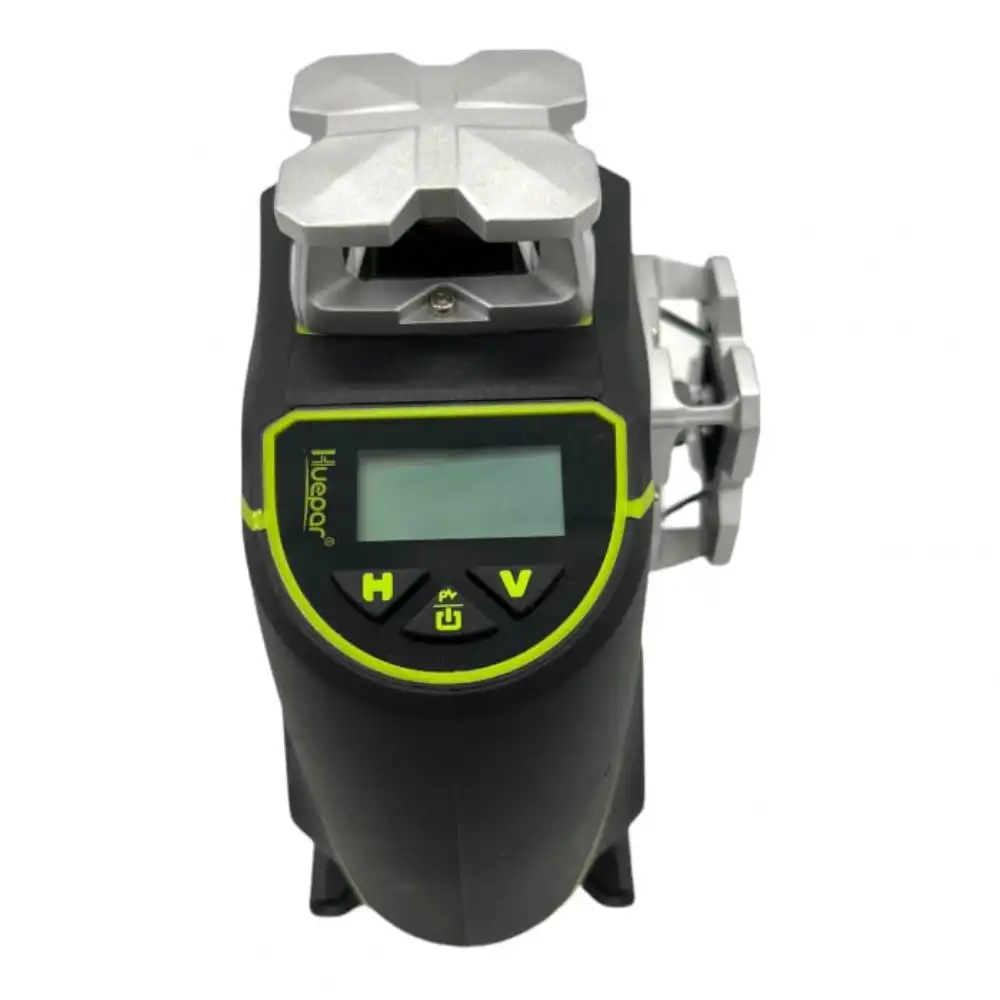

• graphic LCD screen with backlight;
• beam visible up to 45 m;
• audible and visual warning when out of level;
• Remote control;
• Built-in Bluetooth module for control from a smartphone.

Specifications:

1. Laser line projections: 2H360°/2V360°
2. Laser modules: 4 pcs., OSRAM, Germany
3. Laser wavelength: 520 nm
4. Laser class: IEC/EN60825-1:2014, 1 mW
5. Laser colour: Green
6. Levelling accuracy: ±0.2 mm/m
7. Self-levelling range: 4°±1°
8. Levelling time: 3 s
9. Range: 45 m, ≥60 m (with a receiver)
10. Extras: LCD screen, remote control, built-in Bluetooth, inclinometer
11. Power: Li-ion battery 2600 mAh, mains adapter
12. Moisture protection class: IP54
13. Operating temperature: -10 ° C – + 50 ° C
14. Storage temperature: -20°C – +70°C
15. Tripod thread: 1/4″
16. Dimensions: 110 x 90 x 115 mm
17. Weight: 500 g

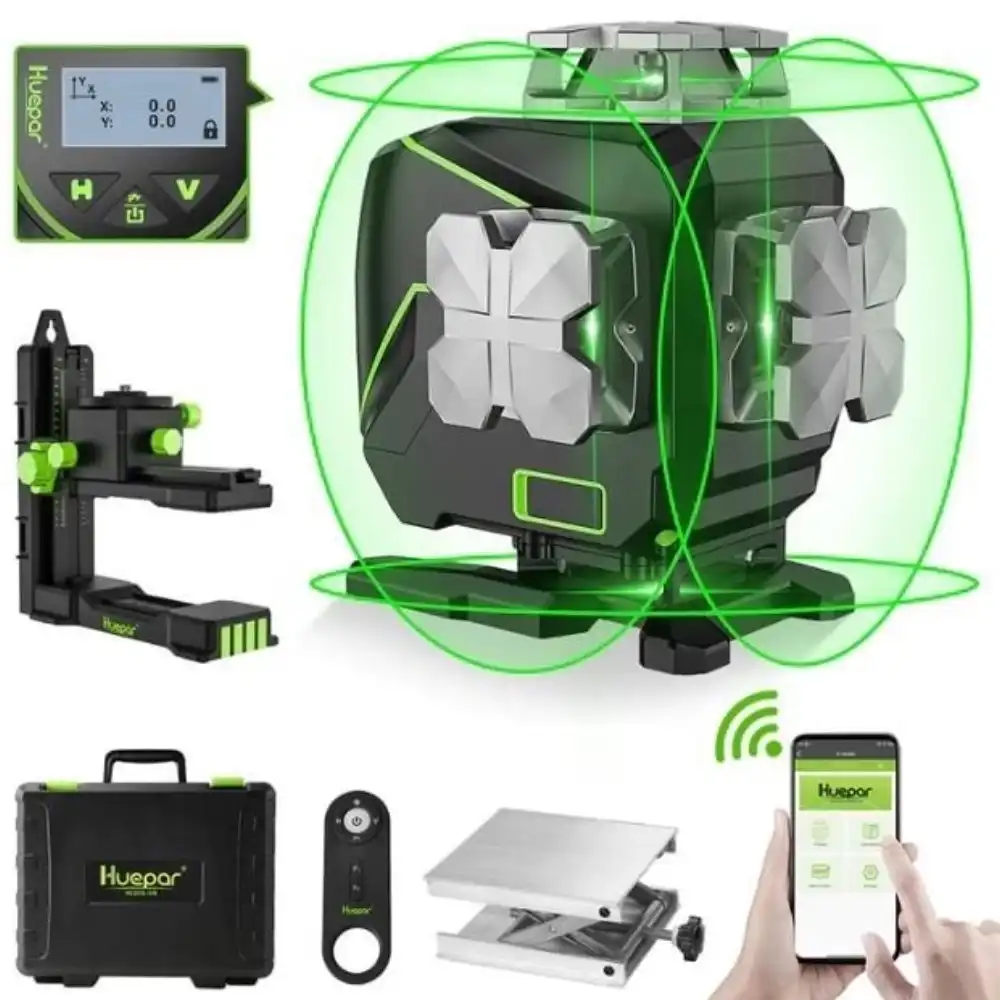

IN THE BOX:

1. Laser level
2. Plastic case
3. Multi-function mount
4. Metal plate for the multi-function mount
5. Remote control
6. Lithium-ion battery (Li-ion)
7. Battery box
8. Adapter for charging the battery and running the unit off 220V mains
9. Height-adjustable platform
10. Instruction manual

Number of beams, pcs. 16
Weight 0.83 kg
Beam colour Green
Maximum working range 100
Range, m 50
Beam direction Level
Accuracy, +-mm/m ± 0.2
Power Battery
Country of manufacture China (Taiwan)
Self-levelling limits 4
Laser class 2
Tripod thread 1/4
Warranty 12 months
