Shijing 6501 Slab Carrier for 900×1800 mm

Shijing 6501 System for Handling 900 X 1800 mm Slabs

SHIJING 6501 Large Ceramic Handling Systems (6501)

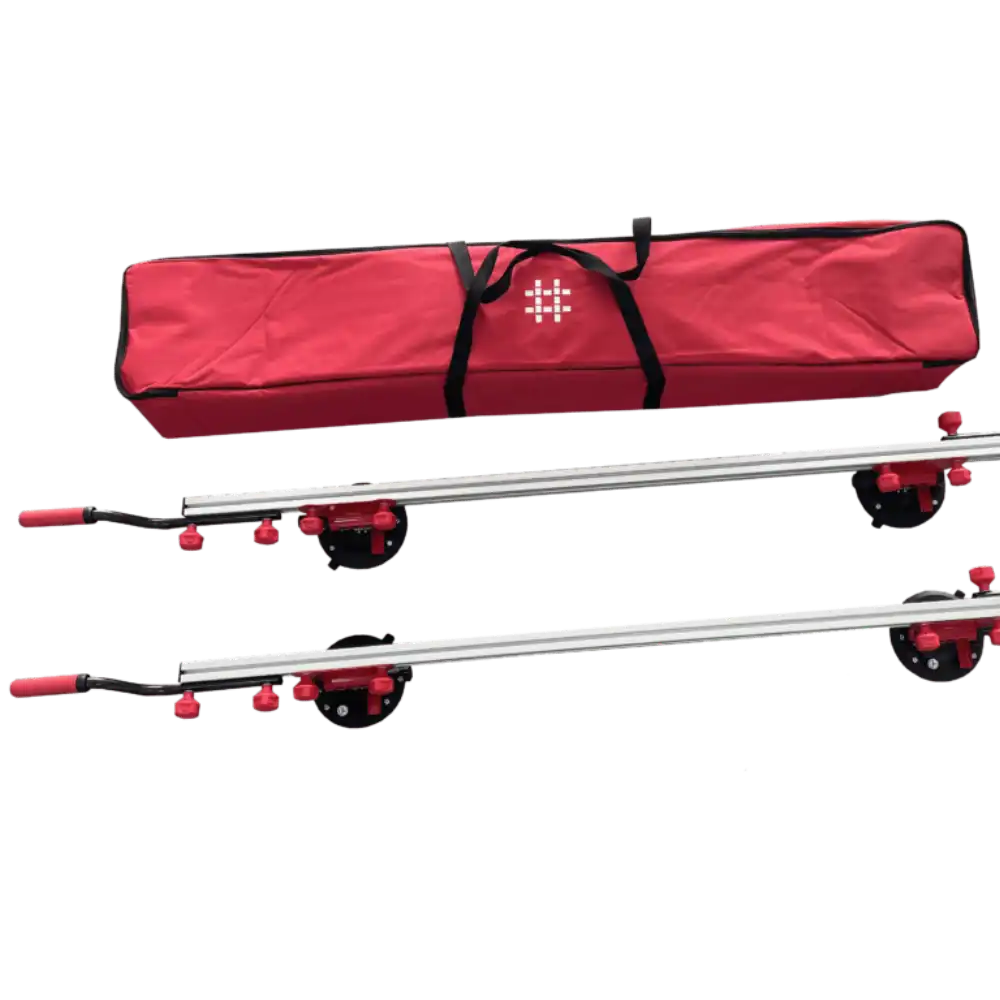

The SHIJING 6501 handling system is a high-performance solution for handling large-format ceramic tiles, simplifying the handling of 900*1800 mm slabs. Equipped with four vacuum clamps, the system ensures a stable and secure grip on the slab during movement. The design includes aluminum rails with comfortable handles for easy transportation.

Advantages:

Exceptional load capacity: With an excellent lifting capacity of up to 200 kg, the SHIJING 6501 system is the ideal choice for transporting even heavy slabs without the risk of damage or deformation.

Comprehensive adaptation to tiles: The ability to process tiles up to 900×1800 mm makes the SHIJING 6501 a universal and effective tool for all types of large-format ceramics.

Grip control: Thanks to the pressure gauge on the vacuum clamps, you can precisely adjust the grip force, which guarantees safety and prevents the tile from slipping during its movement.

Versatility of use: The transport system allows the rails to be used both singly and in pairs, which is ideal for processing narrow tile segments and ensures efficiency even in difficult conditions.

Package contents:

4 vacuum clamps with pressure gauge, diameter 200 mm.

Reinforced telescopic profiles – 2 pieces.
